Delta® T14297-PNLHP

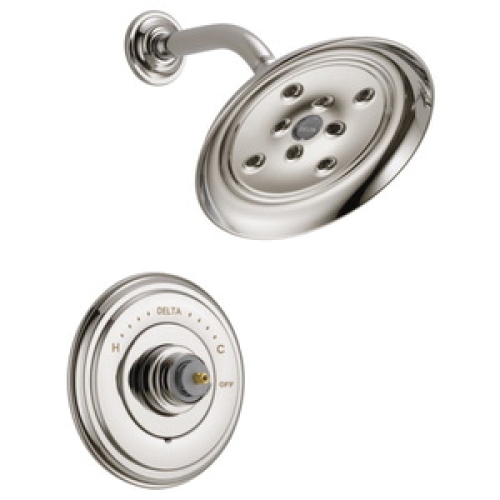

Delta® Cassidy™ Monitor® 14 Traditional T14297 Shower Trim without Handle Program, 2 gpm at 80 psi, Brushed Nickel

  • Manufacturers: Delta Faucet Company
  • Brand Name: Delta®
  • CPEPN: T14297-PNLHP
  • MPN: T14297-PNLHP
  • UPC: 034449684248
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
  • This product ships for free standard ground only.
    Other options will be charged.

Delta® Cassidy™ Monitor® 14 Traditional T14297 Shower Trim, 2 gpm at 80 psi, 7-7/8 Inch Dia x 2-23/32 Inch H Shower Head, 1/2 Inch Shower Head Connection, Spray Pattern: H2OKinetic® Raincan, 1 Spray Function, 6 Inch Arm Length, Single-Function Pressure Balance Cartridge, Wall Mount, Solid Brass, Brushed Nickel, Includes: Mounting Hardware

Series      :      Cassidy™, Monitor® 14, Traditional, T14297
Flow Rate      :      2 gpm at 80 psi
Shower Head Size      :      7-7/8 Inch Dia x 2-23/32 Inch H
Shower Head Connection      :      1/2 Inch
Spray Pattern      :      H2OKinetic® Raincan
Number of Spray Functions      :      1
Arm Length      :      6 Inch
Valve Type      :      Single-Function Pressure Balance Cartridge
Installation Type      :      Wall Mount
Material      :      Solid Brass
Finish      :      Brushed Nickel
Includes      :      Mounting Hardware
Warranty      :      Lifetime Limited

This Cassidy 14 series 1-handle shower only trim only in Brushed Nickel featuring H2Okinetic is the obvious choice for a timeless, traditionally styled bath. Inspired by 1800s ad for a victorian corset, elegant details add visual tension. The Cassidy collection's classical design plays Off of the hugely popular victorian-esque architecture.

  • Monitor® 14 series pressure balanced single handle mixing valve with Scald-Guard®
  • Maintains a balanced pressure of hot and cold water even when a valve is turned on or Off elsewhere in the system
  • For use with MultiChoice® universal rough valve body
  • Back-to-back installation capability
  • Temperature only controlled with handle
  • Field adjustable to limit handle rotation into hot water zone
  • 120 deg maximum handle rotation
  • All parts replaceable from the front of the valve
  • Classical design with multiple handle and spout options as well as a full complement of accessories and finishes
  • The Cassidy™ collection is the obvious choice for a timeless, traditionally styled bath
  • H2Okinetic technology sculpts the water into a unique wave pattern, giving the feeling of more water without using more water
  • WaterSense certification promotes water conservation
  • Pressure balance valve keeps water temperature within a safe +/-3 deg F (+/-1.6 deg C), helping to protect from sudden changes in hot or cold water pressure
  • Soft, rubber spray holes allow to easily wipe away calcium and lime build-up from the sprayface of showerhead and handshower with the touch of a finger
  • Trim kit only, must order multi-choice universal rough-in separately to complete the unit
  • 9-3/32 Inch H x 7 Inch W x 11-7/8 Inch D
  • Must purchase valve and handle separately

Standard/Approvals: ASME A112.18.1/CSA B125.1, ASSE 1016

Application: Business, Commercial and Industrial

  • pdfData Sheet
  • pdfExploded View Sheet
  • pdfInstallation Sheet
