  1. pin-int

Delta® 3597LF-SSMPU-LHP

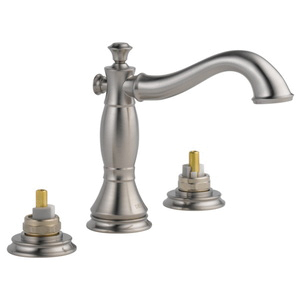

Delta® Cassidy™ Vintage 3597LF Lavatory Faucet without Handle Program, 1.5 gpm at 60 psi, Stainless

  • Manufacturers: Delta Faucet Company
  • Brand Name: Delta®
  • CPEPN: 3597LF-SSMPU-LHP
  • MPN: 3597LF-SSMPU-LHP
  • UPC: 034449681827
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
  • This product ships for free standard ground only.
    Other options will be charged.

Delta® Cassidy™ Vintage 3597LF Lavatory Faucet, Commercial, 1.5 gpm at 60 psi, 6 - 16 Inch Center, High Arc Spout, 5-13/32 Inch Spout Reach, 4-5/16 Inch Spout Height, Ceramic Disc Cartridge, 2-Handle, 3 Faucet Holes, 1/2-14 NPSM, 1-3/32 Inch Maximum Deck Thickness, Deck, Widespread Mount, 9-7/8 Inch W x 5-13/16 Inch H x 7-1/16 Inch D, Brass, Stainless, Includes: Metal Pop-Up Drain with Plated Flange and Stopper and Mounting Hardware

Series      :      Cassidy™, Vintage, 3597LF
Commercial/Residential      :      Commercial
Flow Rate      :      1.5 gpm at 60 psi
Center Distance      :      6 - 16 Inch
Spout Type      :      High Arc
Spout Reach      :      5-13/32 Inch
Spout Height      :      4-5/16 Inch
Cartridge Type      :      Ceramic Disc
Number of Handles      :      2
Number of Faucet Holes      :      3
Connection Type      :      1/2-14 NPSM
Maximum Deck Thickness      :      1-3/32 Inch
Mounting Type      :      Deck, Widespread
Dimensions      :      9-7/8 Inch W x 5-13/16 Inch H x 7-1/16 Inch D
Material      :      Brass
Finish      :      Stainless
Includes      :      Metal Pop-Up Drain with Plated Flange and Stopper and Mounting Hardware
Warranty      :      Lifetime

This Cassidy 8 Inch 2-handle high arc bathroom faucet in stainless handles not included is the obvious choice for a timeless, traditionally styled bath. Inspired by an 1800s ad for a victorian corset, the bottom of the faucet is pulled in like a cinched corset, adding visual tension with elegant detailing. The Cassidy collection's classical design plays Off of the hugely popular victorian-esque architecture. This WaterSense labeled lavatory faucet flows at a water efficient rate of 1.5 gpm, helping you to effortlessly conserve water.

  • Classical design with multiple handle and spout options as well as a full complement of accessories and finishes
  • The Cassidy™ collection is the obvious choice for a timeless, traditionally styled bath
  • WaterSense certification promotes water conservation
  • Superior finishing process - faucet finish covered under lifetime warranty
  • Low lead compliant - complies with federal and state regulations for lead content
  • Designed to easily connect to standard U.S. Plumbing supply bibs
  • Extra-secure mounting assembly
  • Quick Snap® installation
  • Control mechanism is the rotating cylinder type with stainless steel plate and 90 deg rotation, with replaceable non-metallic seats
  • 1/4-turn handle stops
  • Hot and cold stems are interchangeable
  • 3/8 Inch OD copper supply tubes with 1/2 -14 NPSM adapters

Standard/Approvals: ADA Compliant, ASME A112.18.1 M/CSA B125.1 Certified, ASME A112.18.2, ICC/ANSI A117.1 Approved

  • pdfExploded View Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Delta_3597LF-PNMPU-LHP_Exploded_View_Sheet.pdf
  • pdfInstallation Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Delta_3597LF-PNMPU-LHP_Installation_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Delta_3597LF-PNMPU-LHP_Specification_Sheet.pdf
