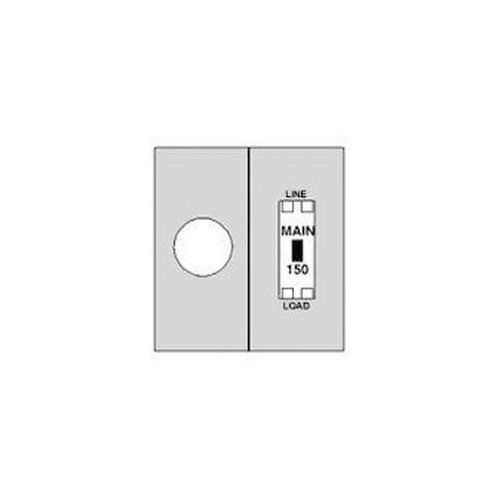

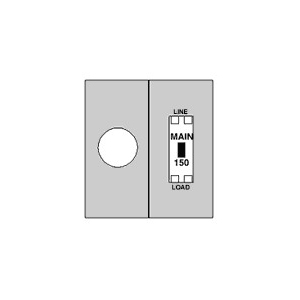

Midwest® MS150C
Midwest® Series MS Ring Service Entrance Meter, 120/240 V, 150 A, 10 kA Interrupt, CB2151 Breaker, 9-Knockouts
- Manufacturers: Midwest Electric Products
- Brand Name: Midwest®
- CPEPN: MS150C
- MPN: MS150C
- UPC: 078456762010
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Total Availability:
-
Price:
Midwest® Series MS Service Entrance Meter, Ring, 120/240 V, 150 A, 1, 10 kA Interrupt, CB2151 Breaker, Series Wiring Configuration, Overhead/Underground Feed, 9-Knockouts, Surface Mount, NEMA 3R, Weatherproof, 16 x 17 Inch Cabinet, G90 Galvanized Steel Housing, 16-3/4 Inch W x 17-1/4 Inch H x 5 Inch D, Includes: Breaker
| Type | : | Ring |
| Series | : | Series MS |
| Voltage Rating | : | 120/240 V |
| Amperage Rating | : | 150 A |
| Number of Phases | : | 1 |
| Interrupt Rating | : | 10 kA |
| Breaker Type | : | CB2151 |
| Wiring Configuration | : | Series |
| Feed Type | : | Overhead/Underground |
| Number of Knockouts | : | 9 |
| Mounting Type | : | Surface |
| Enclosure Type | : | NEMA 3R, Weatherproof |
| Cabinet Size | : | 16 x 17 Inch |
| Housing Material | : | G90 Galvanized Steel |
| Dimensions | : | 16-3/4 Inch W x 17-1/4 Inch H x 5 Inch D |
| Includes | : | Breaker |
National electric code requires electrical distribution equipment to be rated as service entrance, wherever electrical power enters a building or other structure. Service entrance products are typically utilized on single-family residences and mobile homes. Midwest electric offers a broad range of surface mount and pedestal units, factory assembled and wired. Pedestal units come standard with loop feed lugs to reduce installation time and labor expense. Service entrance equipment is made of heavy, galvanized G-90 steel, preventing corrosion and fading.
- With hub provision and circuit protection
- Durable polyester powder coat finish resists chipping and fading
- Segregated meter compartment for utility power protection
- Weather resistant and tamper resistant GFCI receptacles
- Horn bypass comes standard on ringless metered units
- Side by side
- Bare copper wire
Standard/Approvals: UL Listed
Application: Construction, Residential and Service Entrance
