Midwest® U101C

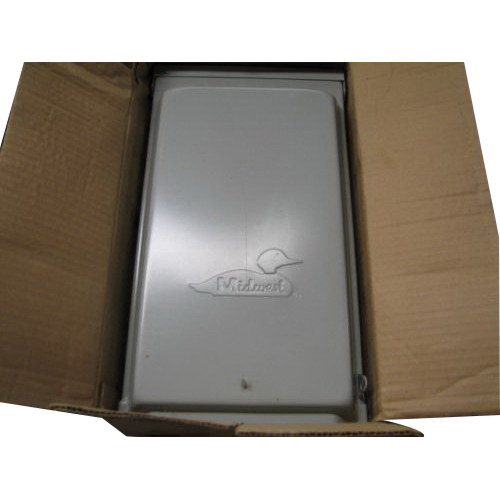

Midwest® U101C Unmetered Service Entrance, 120/240 V, 100 A, 3-Spaces, CB2100 Breaker, Series Wiring Configuration
- Manufacturers: Midwest Electric Products
- Brand Name: Midwest®
- CPEPN: U101C
- MPN: U101C
- UPC: 784567562309
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Total Availability:
-
Price:
Midwest® Unmetered Service Entrance, 120/240 V, 100 A, 1, CB2100 Breaker, Series Wiring Configuration, 3-Spaces, 14 - 1/0 AWG Line Side, 14 - 1/0 AWG Load Side Wire, Overhead Feed, Knockout Code (B): 1, 1-1/4, 1-1/2 Inch; Knockout Code (G): 1/2, 3/4, 1 Inch; Knockout Code (H): 1/2, 3/4, 1, 1-1/4 Inch Cable Entry, 3-Knockouts, Surface Mount, NEMA 3R, 9 x 17 Inch Cabinet, G90 Galvanized 16 ga Steel Housing, 9-3/4 Inch W x 17-3/8 Inch H x 5-3/16 Inch D
| Voltage Rating | : | 120/240 V |
| Amperage Rating | : | 100 A |
| Number of Phases | : | 1 |
| Breaker Type | : | CB2100 |
| Wiring Configuration | : | Series |
| Number of Spaces | : | 3 |
| Wire Size | : | 14 - 1/0 AWG Line Side, 14 - 1/0 AWG Load Side |
| Feed Type | : | Overhead |
| Cable Entry | : | Knockout Code (B): 1, 1-1/4, 1-1/2 Inch; Knockout Code (G): 1/2, 3/4, 1 Inch; Knockout Code (H): 1/2, 3/4, 1, 1-1/4 Inch |
| Number of Knockouts | : | 3 |
| Mounting Type | : | Surface |
| Enclosure Type | : | NEMA 3R |
| Cabinet Size | : | 9 x 17 Inch |
| Housing Material | : | G90 Galvanized 16 ga Steel |
| Dimensions | : | 9-3/4 Inch W x 17-3/8 Inch H x 5-3/16 Inch D |
Heavy galvanized G90 16 ga steel, with highest quality electro-deposition finish, resists corrosion and fading 200 or 125 A continuous duty meter socket with meter guides and reinforced jaws for ring and ringless type sockets utility meter socket compartment barriered from breaker mains for utility power protection rated NEMA 3R.
- Weather proof equipment all terminals accept copper or aluminum wire for added installation flexibility
- Removable post door allows lay in wiring 200 A. Factory wired loop feed lugs rolled edge post bottoms to protect service cable locking hasp for utility seal on post covers
- One heads overhead feed CB2100 installed breaker 3 additional breaker spaces per head series wiring configuration provide circuit protection hub provision LC55N1 loadcenter no loop feed
- 10 kA short circuit rating
- Doors have padlock provision to prevent unauthorized entry supplied with 12-2 Cu/Al equipment ground lug. All GFCI duplexes are listed as weather-resistant and tamper resistant as required by 2008 NEC in article 406.8 and 406.11
Standard/Approvals: UL Listed
Application: Outdoor and Residential
