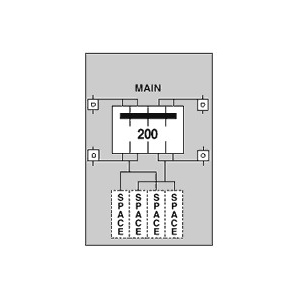

Midwest® Unmetered Service Entrance, 120/240 V, 200 A, 1, 4-Circuits, CB4200H Breaker, Series Wiring Configuration, 8-Spaces, 1 - 4/0 AWG Stranded (Copper, Line/Load), 2/0 - 4/0 AWG Stranded (Aluminum, Line/Load), 1 - 4/0 AWG Stranded (Copper/Aluminum, Neutral), 6 - 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 - 8 AWG Solid/14 - 4 AWG Stranded (Copper/Aluminum) Wire, Overhead Feed, 11-Knockouts, Surface Mount, NEMA 3R, 9 x 21 Inch Cabinet, G90 Galvanized 16 ga Steel Housing, 20-3/4 Inch W x 9-3/4 Inch H x 5-11/16 Inch D
| Voltage Rating | : | 120/240 V |
| Amperage Rating | : | 200 A |
| Number of Phases | : | 1 |
| Number of Circuits | : | 4 |
| Breaker Type | : | CB4200H |
| Wiring Configuration | : | Series |
| Number of Spaces | : | 8 |
| Wire Size | : | 1 - 4/0 AWG Stranded (Copper, Line/Load), 2/0 - 4/0 AWG Stranded (Aluminum, Line/Load), 1 - 4/0 AWG Stranded (Copper/Aluminum, Neutral), 6 - 2/0 AWG Stranded (Copper/Aluminum, Neutral/Ground B), 14 - 8 AWG Solid/14 - 4 AWG Stranded (Copper/Aluminum) |
| Feed Type | : | Overhead |
| Number of Knockouts | : | 11 |
| Mounting Type | : | Surface |
| Enclosure Type | : | NEMA 3R |
| Cabinet Size | : | 9 x 21 Inch |
| Housing Material | : | G90 Galvanized 16 ga Steel |
| Dimensions | : | 20-3/4 Inch W x 9-3/4 Inch H x 5-11/16 Inch D |
Standard/Approvals: UL Listed
Application: Outdoor and Residential
