Midwest® U010C
Send Print
  1. pin-int

Midwest® U010C

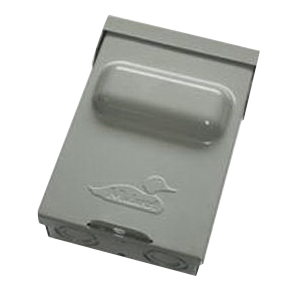

Midwest® U010C Unmetered Power Outlet, 5-20R2 Receptacle CB120 Circuit Breaker, Surface Mount, NEMA 3R, NEMA 5-20

  • Manufacturers: Midwest Electric Products
  • Brand Name: Midwest®
  • CPEPN: U010C
  • MPN: U010C
  • UPC: 784567566802
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

Midwest® Power Outlet, Unmetered, 5-20R2 Receptacle, CB120 Circuit Breaker, 10000 kA, 120/240 V, 20 A, 1-Phase Panel, Surface Mount, NEMA 3R, NEMA 5-20, Steel, Zinc Electro Plated, 7-1/4 Inch W x 9-1/8 Inch H x 5-3/16 Inch D

Type      :      Unmetered
Receptacle Type      :      5-20R2
Circuit Breaker Type      :      CB120
Panel Rating      :      10000 kA, 120/240 V, 20 A, 1 Phase
Mounting Type      :      Surface
Enclosure Type      :      NEMA 3R, NEMA 5-20
Material      :      Steel
Finish      :      Zinc Electro Plated
Dimensions      :      7-1/4 Inch W x 9-1/8 Inch H x 5-3/16 Inch D

Midwest unmetered power outlet features G90 galvanized steel construction to provide good corrosion protection. It has circuit breaker installation for protection.

  • All components are factory wired and assembled, reducing installation time
  • Door has stay-open position for user convenience
  • Wide range of receptacle configurations
  • Overhead feed
  • Cover design allows cords to exist while maintaining the NEMA 3R integrity
  • Padlock provision to help prevent unauthorized access
  • 6 x 9 Inch cabinet
  • With circuit protection, hub provision
  • (1) head

Standard/Approvals: cUL/UL Listed

  • pdfBrochure https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Midwest_U010C_Brochure.pdf
  • pdfCatalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Midwest_U010C_Catalog.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Midwest_U010C_Specification_Sheet.pdf
