Midwest® U041C

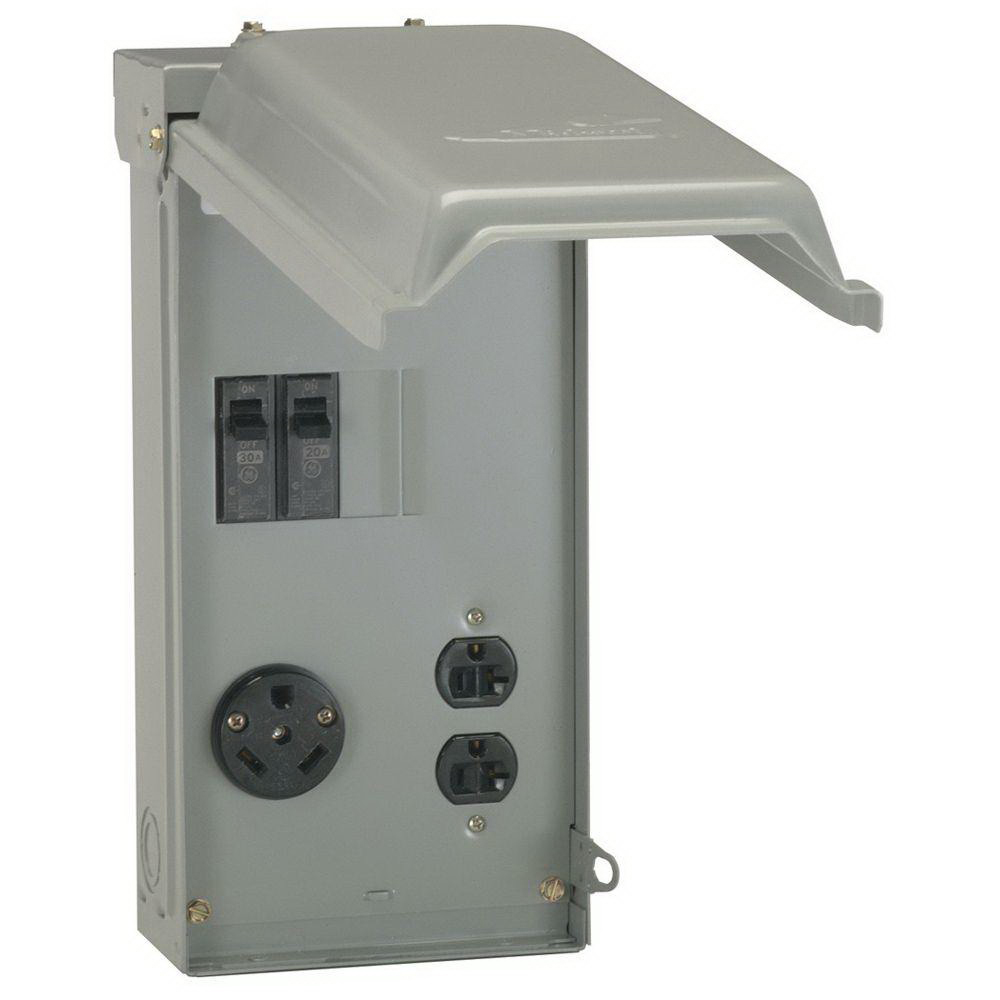

Midwest® Power Outlet, Heavy Duty, Outdoor, Unmetered, 70 A R32U 5-20R2 Receptacle, 120/240 V, CB130, CB120 Circuit Breaker, Surface Mount, NEMA 3R, Y Opening Hub, G90 Galvanized Steel, Gray, Zinc Electro Plated, 7-1/4 Inch W x 14-3/8 Inch H x 5-3/16 Inch D

Midwest 1-phase unmetered heavy duty power outlet in gray color features G90 galvanized steel construction to offer resistance against corrosion. Outlet has durable polyester powder coat finish to resist chipping and fading. It has a voltage rating of 120/240 V and a current rating of 70 A. Outlet measures 14-3/8 x 7-1/4 x 5-3/16 Inch. It has a cabinet of size 6 x 14 Inch. Outlet has dead front construction to prevent accidental contact with live parts and durable padlock to avoid unauthorized access. It has R32U left position and 5-20R2 right position receptacle. It features CB130 first position and CB120 second position circuit breaker for extra safety.

• All-in-one construction for factory assured terminations
• Rolled edge door for cord protection
• All components are factory wired and assembled, reducing installation time
• Door has stay-open position for user convenience
• Wide range of receptacle configurations
• Overhead feed
• LC33N7 loadcenter
• Line Side: 12 - 8 AWG solid, 12-2 AWG stranded (aluminum), 14-8 AWG solid, 14-2 AWG stranded (copper)
• Load Side: 14-10 AWG solid/stranded (copper)

Standard/Approvals: UL Listed

Application: Residential/Construction

• Specification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Midwest_U041C_Specification_Sheet.pdf
