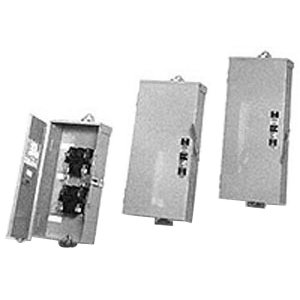

Midwest® GS1101B12UL

Midwest® GS Transfer Switch, Heavy Duty, Unmetered, 120/240 V, 60 Hz, 1-Phase, 100 A, 2 Pole, NEMA 3R, Steel, Zinc Coated, 26 Inch L x 13 Inch W x 6-3/4 Inch D.

• Heavy duty manual transfer switch provides reliable, trouble-free transfer of power from the normal utility supplied source, to a stand-by generator
• The double throw mechanism helps prevent dangerous back feeding of generator power into the utility system
• Designed to be fully operational and switchable at full rated capacity
• Quick-make, quick break switch mechanism All-in-one construction for factory assured terminations
• Bus bars used to interconnect main and standby switches
• Knife blade switch contacts provide long life
• Heavy zinc coated steel with highest quality powder coat finish resists corrosion and fading welded flange
• Quality user tested components for long life
• Suitable for use as service equipment, when installed in accordance with the NEC interlock allows door opening only when switch is in the off position
• Padlock provision in all three on-off-on transfer positions
• All terminals accept copper or aluminum wire for added installation flexibility

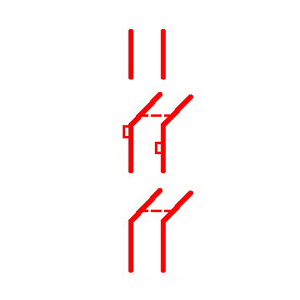

• DPDT action
• 1/4 Inch, 11/16 Inch, (3) 1 - 1-1/2 Inch, 1/2 - 1 Inch knockout

Standard/Approvals: UL, cUL Listed

Application: Dairy Farms, Poultry Farms, Ventilation in Animal Confinement Buildings and Crop Drying
