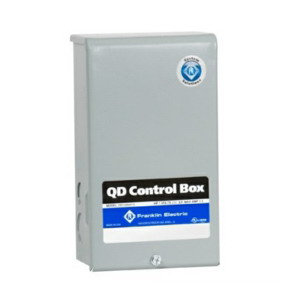

Franklin Electric 2801054915

Franklin Electric 2801054915 Quick Disconnect Relay Pump Control Box, Submersible Pump, 1/2 hp, 230 V, 60 Hz, 1 Phase

  • Manufacturers: Franklin Electric
  • Brand Name: Franklin Electric
  • CPEPN: 2801054915
  • MPN: 2801054915
  • UPC: 10121117341
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability

Franklin Electric Pump Control Box, Quick Disconnect Relay, Submersible Pump, 1/2 hp, 230 V, 60 Hz, 1 Phase, 6 A, CSIR Control Box, 3-Wire, NEMA 3R, Pole/Wall Mount, 4-7/8 Inch W x 8-1/2 Inch H x 2-7/8 Inch D

Type      :      Quick Disconnect Relay
Pump Type      :      Submersible
Power Rating      :      1/2 hp
Voltage Rating      :      230 V, 60 Hz, 1 Phase
Amperage Rating      :      6 A
Control Box Type      :      CSIR
Electrical Connection      :      3-Wire
Enclosure Type      :      NEMA 3R
Mounting Type      :      Pole/Wall
Dimensions      :      4-7/8 Inch W x 8-1/2 Inch H x 2-7/8 Inch D

Franklin electric submersible control boxes are designed and optimized specifically for Franklin three-wire, 1-phase motors rated 1/3 to 15 hp. Control boxes are an integral part of a submersible motor power system and rigorous component testing ensures the most robust products in the industry. Franklin control boxes provide long-lasting, reliable operation for best system performance.

  • Accepts up to no 10 AWG wire
  • Quick-disconnect (QD) boxes make trouble shooting simple by automatically disconnecting the control components from the system when the lid is removed
  • Capacitor start
  • Solid state switching, with the QD relay, provides longer life than voltage relays, and improves the operation of the system
  • CRC boxes feature a run capacitor for smoother motor operation

Standard/Approvals: UL Listed

Application: Outdoor

  • pdfBrochure https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Franklin_Electric_2801054915_Brochure.pdf
  • pdfInstallation Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Franklin_Electric_2801054915_Installation_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Franklin_Electric_2801054915_Specification_Sheet.pdf

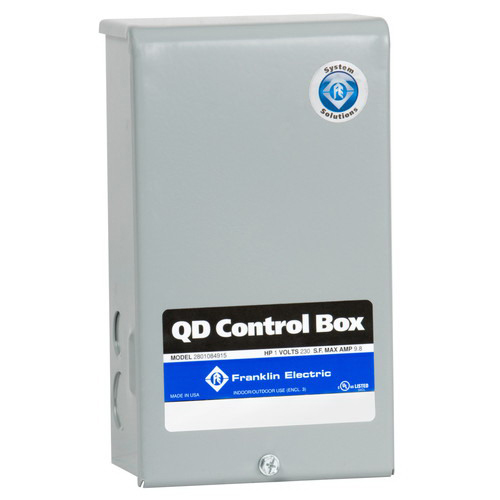

    • Franklin Electric 2801084915
