Spears® 470412

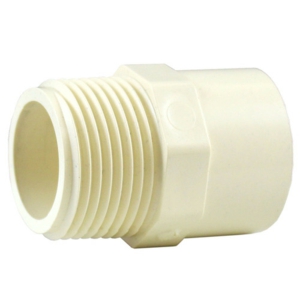

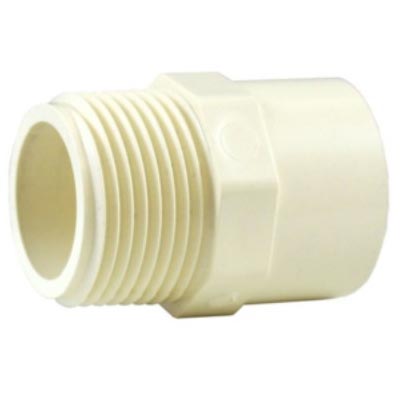

NIBCO® 470412 Solvent Weld Tube To Pipe Adapter, 1/2 Inch, Slip x MIP, FlowGuard Gold® CPVC, 180 deg F

  • Manufacturers: Spears Manufacturing
  • Brand Name: Spears®
  • CPEPN: 12CPVCMIP
  • MPN: 470412
  • UPC: 039923107244
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability

NIBCO® Tube To Pipe Adapter, Solvent Weld, 1/2 Inch, Slip x MIP, FlowGuard Gold® CPVC, 180 deg F

Type      :      Solvent Weld
Nominal Size      :      1/2 Inch
End Style      :      Slip x MIP
Material      :      FlowGuard Gold® CPVC
Temperature Rating      :      180 deg F
Warranty      :      5 Years Limited

The NIBCO® CPVC-CTS male adapter is made of FlowGuard Gold® CPVC and is ideally suited for hot and cold water pressure distribution systems in residential and commercial applications. The CPVC-CTS male adapter features a female socket x male NPT threaded connection and provides a means for adapting a solvent weld connection to a threaded connection. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. Chlorinated polyvinyl chloride (CPVC) has proven to be an excellent material for hot corrosive liquids, hot and cold water distribution, and similar applications above the temperature range of PVC. CPVC will not rust, pit, scale or corrode. CPVC fittings are easy-to install and are joined by solvent cementing or threading.


Standard/Approvals: ASTM D, NSF/ANSI Specified

  • pdfWarranty Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/NIBCO_470412_Warranty_Sheet.pdf
