Sioux Chief 630X248

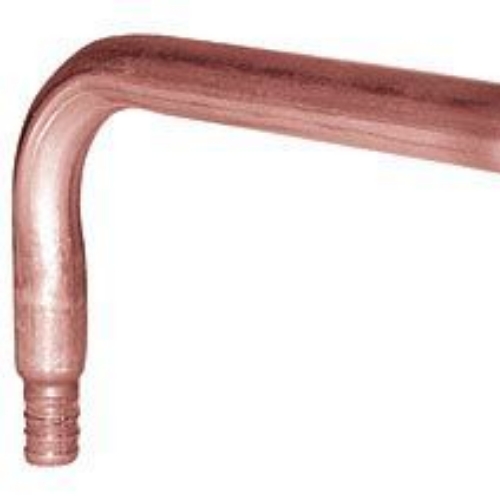

Sioux Chief 630X248 Type L Standard Tube Stub Out Elbow, 90 deg, 1/2 Inch, CTS, Solid Copper

  • Manufacturers: Sioux Chief Mfg
  • Brand Name: Sioux Chief
  • CPEPN: 12PEXSTUB90
  • MPN: 630X248
  • UPC: 739236402110
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability

Sioux Chief Tube Stub Out Elbow, Type L, Standard, 90 deg, 1/2 Inch, CTS, ASTM F1807 Solid Copper, 3-1/2 Inch W x 8 Inch H

Type      :      Type L, Standard
Angle      :      90 deg
Nominal Size      :      1/2 Inch
End Style      :      CTS
Material      :      Solid Copper
Material Specification      :      ASTM F1807
Dimensions      :      3-1/2 Inch W x 8 Inch H
  • Accepts sweat, push-fitting and compression valves
  • Combines easy adapting of copper stub outs with easy installation of PEX system
  • Tube stops formed into each fitting
  • 1-piece solid copper
  • Push-fitting systems are not compatible with nickel-plated stub out elbows
  • Manage materials more easily
  • Prevent leaks by using preformed copper

Application: Plumbing

  • pdfBrochure https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Sioux_Chief_645X2GPK2_Brochure.pdf
  • pdfInstallation Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Sioux_Chief_630X248_Installation_Sheet.pdf
