American Granby HMIP100SE

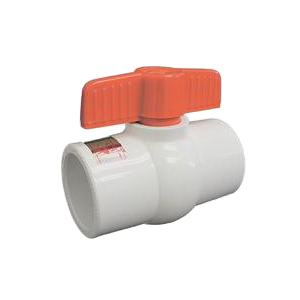

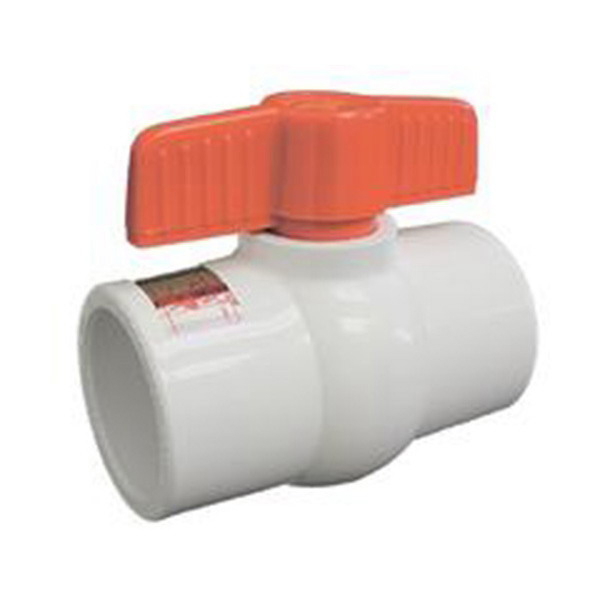

HMIP100SE Molded-In-Place Solvent Weld Ball Valve, 1 Inch, Socket, 150 psi, PVC Body, ABS Plastic Handle Actuator

  • Manufacturers: American Granby
  • Brand Name: American Granby
  • CPEPN: HMIP100SE
  • MPN: HMIP100SE
  • UPC: 642026001502
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability

Ball Valve, Molded-In-Place, Solvent Weld, 1 Inch, Socket, 150 psi, 48 Cv, 2-Port, PVC Body, PVC Ball, Zinc Plated Steel Bolt, EPDM Stem, EPDM O-Ring, Buna-N Seal, EPDM Seat, ABS Plastic Handle Actuator, 73 deg F, 4.13 Inch L x 3.63 Inch W, White

Type      :      Molded-In-Place, Solvent Weld
Nominal Size      :      1 Inch
End Style      :      Socket
Pressure Rating      :      150 psi
Flow Rate      :      48 Cv
Port Type      :      2-Port
Body Material      :      PVC
Ball Material      :      PVC
Trim Material      :      Zinc Plated Steel Bolt, EPDM Stem
Softgoods Material      :      EPDM O-Ring, Buna-N Seal, EPDM Seat
Actuator Type      :      ABS Plastic Handle
Temperature Rating      :      73 deg F
Dimensions      :      4.13 Inch L x 3.63 Inch W
Color      :      White
  • Maintenance free compact design
  • Severe shock loads and misalignment stress are absorbed by the valve body, not the ball and seat, minimizing the chance of uneven wear and leakage
  • Imported
  • Heavy-duty thermoplastic white PVC (type 1, grade 1) construction
  • Maintenance free compact design
  • Lead free
  • SCH 40
  • Large flow opening

Standard/Approvals: ASTM 2467, ISO: 9002 Certified, NSF/ANSI 372
