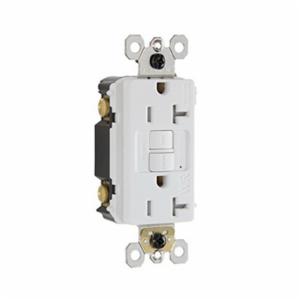

Pass & Seymour® TradeMaster® 2097TRWRLA

Legrand® 2097TRWRLA Self-Test Tamper-Resistant Weather-Resistant Duplex GFCI Receptacle, Commercial, 3 Wires, 20 A

  • Manufacturers: Legrand
  • Brand Name: Pass & Seymour® TradeMaster®
  • CPEPN: 2097-TRWRLA
  • MPN: 2097TRWRLA
  • UPC: 785007036008
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability

Legrand® Duplex GFCI Receptacle, Self-Test, Tamper-Resistant, Weather-Resistant, Series: Spec-Grade, Commercial, 3 Wires, 10 - 14 AWG Wire, 20 A, 125 V, 60 Hz, Insulated Insulation, 5-20R, Ground Screw with Back-Wire Clamp Terminal, Wall Mount, Thermoplastic, Light Almond

Type      :      Self-Test, Tamper-Resistant, Weather-Resistant
Series      :      Spec-Grade
Commercial/Residential      :      Commercial
Number of Wires      :      3
Wire Size      :      10 - 14 AWG
Amperage Rating      :      20 A
Voltage Rating      :      125 V
Frequency Rating      :      60 Hz
Insulation Type      :      Insulated
Enclosure Type      :      5-20R
Terminal Type      :      Ground Screw With Back-Wire Clamp
Mounting Type      :      Wall
Material      :      Thermoplastic
Color      :      Light Almond

Conducts an automatic test every three seconds, ensuring it's always ready to protect. if the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. it also has our proven SafeLock™ protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.

  • Protects children patented shutter system helps prevent improper insertion of foreign objects
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. if the device fails the test, the indicator light flashes to signal that the GFCI should be replaced
  • Thinner than competitors' GFCI receptacles leaves more room for wires in the box
  • Auto-Ground clip assures a positive ground to metal box
  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles
  • Prevents line-load reversal miswire no power to the face or downstream receptacles if wired incorrectly
  • Side or internal screw-pressure-plate back-wire with #10-#14 AWG solid or stranded copper wire
  • Two back-wire holes per terminal
  • Ground screw has back-wire clamp for easy installation
  • Mounting screws are shipped captive in the device and wall plate for easier installation
  • Dual-direction test and reset buttons
  • Extra-long strap

Standard/Approvals: cULus Listed, UL498

  • pdfData Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Legrand_2097TRW_Data_Sheet_1.pdf
  • pdfData Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Legrand_2097TRW_Data_Sheet_2.pdf
  • pdfInstallation Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Legrand_2097TRW_Installation_Sheet.pdf
