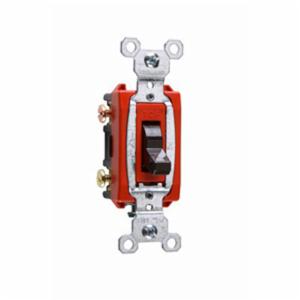

Legrand® CS20AC3

Legrand® Specification Grade Heavy Duty Toggle Switch, 120/277 VAC, 20 A, 3 Pole, 3 W, Operation 3-Way, Brown

Legrand® Toggle Switch, Heavy Duty, Series: Spec-Grade, Commercial, 120/277 VAC, 3 W, 20 A, 3 Pole, Cam Control and Spring Actuator, Operation: 3-Way, No 14 - 10 AWG Back and Side Wired, Tri-Drive Ground Terminal, 50000 Operating Cycles, Bare Insulation, NEMA WD-1, WD-6, Wall, Screw Mount, -40 to 115 deg C, 1.32 Inch W x 3.281 Inch H x 1.073 Inch D, Thermoplastic Polycarbonate, Brown

Type      :      Heavy Duty
Series      :      Spec-Grade
Commercial/Residential      :      Commercial
Voltage Rating      :      120/277 VAC
Power Rating      :      3 W
Amperage Rating      :      20 A
Number of Poles      :      3
Actuator Type      :      Cam Control and Spring
Operation      :      3-Way
Terminal Type      :      No 14 - 10 AWG Back and Side Wired, Tri-Drive Ground
Operating Cycles      :      50000
Insulation Type      :      Bare
Enclosure Type      :      NEMA WD-1, WD-6
Mounting Type      :      Wall, Screw
Temperature Rating      :      -40 to 115 deg C
Dimensions      :      1.32 Inch W x 3.281 Inch H x 1.073 Inch D
Material      :      Thermoplastic Polycarbonate
Color      :      Brown
Warranty      :      1 Year

These switches offer excellent value while meeting federal specification standards. External screw-pressure-plate back wiring enables fast installation and superior electrical connections. Rugged construction shrugs off hard-use and abuse.

  • One-piece brass alloy contact arm for reliable electrical performance
  • One-piece steel strap with integral ground is plated for corrosion resistance
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
  • Heavy duty toggle bumpers for smooth and quiet operation
  • Back body made of glass-reinforced nylon, locking support provides resistance to face and back body separation
  • Shallow design for easier installation
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 1No 4-10 AWG copper or copper-clad wire
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life
  • Oversized silver alloy contacts for longer dependable switch life
  • Tri-drive terminal and mounting screws

Standard/Approvals: CSA-C22.2 No. 111, cULus LR17446

Application: For Hospitality/Lodging, Retail, Multiple Dwelling and Office
