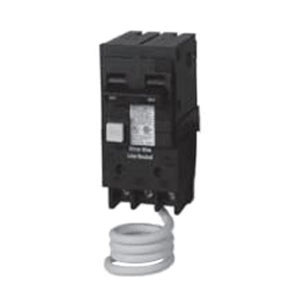

Siemens Series QF Ground Fault Circuit Breaker, Residential Commercial/Residential, 120/240 VAC, 60 A, 10 kA Interrupt, Thermal Magnetic Trip, 5 mA Trip, 2 Pole, Plug-On Clip, 14 - 4 AWG Copper/Aluminum Wire, Lug Terminal, Panel Board Mount, 40 deg C, 3.13 Inch L x 2 Inch W x 2.38 Inch D
| Series | : | Series QF |
| Commercial/Residential | : | Residential |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 60 A |
| Interrupt Rating | : | 10 kA |
| Trip Type | : | Thermal Magnetic |
| Trip Range | : | 5 mA |
| Number of Poles | : | 2 |
| Connection Type | : | Plug-On Clip |
| Wire Size | : | 14 - 4 AWG Copper/Aluminum |
| Terminal Type | : | Lug |
| Mounting Type | : | Panel Board |
| Temperature Rating | : | 40 deg C |
| Dimensions | : | 3.13 Inch L x 2 Inch W x 2.38 Inch D |
- De-energizes the circuit for all ungrounded conductors of the circuit
- Siemens 2 pole GFCI circuit breaker features high quality thermal magnetic case for extra protection
- 125 A/QP frame
Standard/Approvals: UL Listed, CSA Certified, HACR Rated
Application: Siemens Load Centers
