Siemens QF115A
Send Print
  1. pin-int

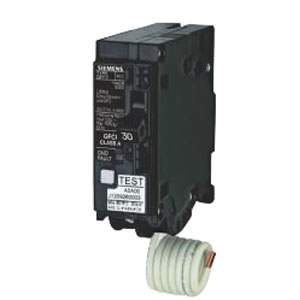

Siemens QF115A

Siemens Series QF Ground Fault Circuit Breaker (GFI), 120 VAC, 15 A, 10 kA Interrupt, 1 Pole, 5 mA Thermal Magnetic Trip

  • Manufacturers: Siemens AG
  • Brand Name: Siemens
  • CPEPN: QF115A
  • MPN: QF115A
  • UPC: 887621216511
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

Siemens Series QF Ground Fault Circuit Breaker, Residential Commercial/Residential, 120 VAC, 15 A, 10 kA Interrupt, Thermal Magnetic Trip, 5 mA Trip, 1 Pole, Plug-In, 14 - 10 AWG Wire, Lug Terminal, Panel Board Mount, 2.84 Inch L x 1 Inch W x 2.66 Inch D

Series      :      Series QF
Commercial/Residential      :      Residential
Voltage Rating      :      120 VAC
Amperage Rating      :      15 A
Interrupt Rating      :      10 kA
Trip Type      :      Thermal Magnetic
Trip Range      :      5 mA
Number of Poles      :      1
Connection Type      :      Plug-In
Wire Size      :      14 - 10 AWG
Terminal Type      :      Lug
Mounting Type      :      Panel Board
Dimensions      :      2.84 Inch L x 1 Inch W x 2.66 Inch D
  • Intended for personnel protection
  • Includes Self Test as an added safety feature
  • Suitable for a variety of construction applications: spas, hot tubs, kitchens, bathrooms,
  • Resists false tripping (shielded to prevent RF interference)
  • Standard 1 Inch per pole format with plug-in design
  • Provides Class A GFCI protection



Standard/Approvals: UL Listed, CSA Certified, HACR Rated

Application: Siemens Load Centers

  • pdfCatalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Siemens_QF115A_Catalog.pdf
  • pdfData Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Siemens_QF115A_Data_Sheet.pdf
