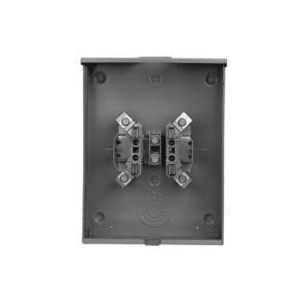

Siemens SUAT417-XGF

Siemens Ringless Meter Socket, 600 V, 200 A, 3-Wire Wiring Configuration, Overhead/Underground Feed

  • Manufacturers: Siemens AG
  • Brand Name: Siemens
  • CPEPN: SUAT417-XGF
  • MPN: SUAT417-XGF
  • UPC: 783643242296
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
  • This item does not qualify for free shipping

Siemens Meter Socket, Ringless, 600 V, 200 A, 1, 3-Wire Wiring Configuration, Overhead/Underground Feed, RX Cable Entry, Hot Dipped Galvanized Carbon Steel Housing, 11.4 Inch W x 14.8 Inch H x 4.5 Inch D, Includes Stainless Steel Latch and Hasp

Type      :      Ringless
Voltage Rating      :      600 V
Amperage Rating      :      200 A
Number of Phases      :      1
Wiring Configuration      :      3-Wire
Feed Type      :      Overhead/Underground
Cable Entry      :      RX
Housing Material      :      Hot Dipped Galvanized Carbon Steel
Dimensions      :      11.4 Inch W x 14.8 Inch H x 4.5 Inch D
Includes      :      Stainless Steel Latch and Hasp
  • Suitable for overhead and underground feed
  • Hot-dip galvanized carbon steel for corrosion resistance
  • Electro statically powder-coated polyester paint for corrosion resistance and a great looking finish
  • Contact local utility to confirm meter socket approval

Standard/Approvals: UL Listed
