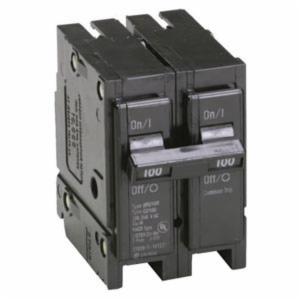

Cutler-Hammer BR2100

Cutler Hammer Series BR Circuit Breaker, 120/240 VAC, 100 A, 10 kA Interrupt, 2 Pole Common, Thermal Magnetic Trip

Cutler Hammer Series BR Circuit Breaker, Commercial/Residential, 120/240 VAC, 100 A, 10 kA Interrupt, Common, Thermal Magnetic Trip, 2 Pole, Toggle Handle Actuator, 8 - 1/0 AWG Aluminum/Copper Wire, Plug-On Mount, 60 - 75 deg C, 3 Inch L x 2 Inch W x 3 Inch H

Series      :      Series BR
Commercial/Residential      :      Commercial/Residential
Voltage Rating      :      120/240 VAC
Amperage Rating      :      100 A
Interrupt Rating      :      10 kA
Trip Type      :      Common, Thermal Magnetic
Number of Poles      :      2
Actuator Type      :      Toggle Handle
Wire Size      :      8 - 1/0 AWG Aluminum/Copper
Mounting Type      :      Plug-On
Temperature Rating      :      60 - 75 deg C
Dimensions      :      3 Inch L x 2 Inch W x 3 Inch H
  • Operated by toggle-type handle and multi-pole circuit breakers have an internal common trip mechanism
  • Handle position provides visual trip position
  • HACR rated
  • Common trip requires (2) 1-Inch (25.4 mm) spaces

Standard/Approvals: Federal Specification Classification W-C375, UL 489

Application: For Type BR Loadcenters

  • pdfCatalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BR115_Catalog.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BR2100_Specification_Sheet.pdf
