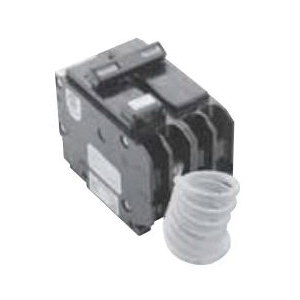

Cutler-Hammer GFTCB230
Cutler Hammer® Series BR Ground Fault Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Residential
- Manufacturers: Eaton
- Brand Name: Cutler-Hammer
- CPEPN: GFTCB230
- MPN: GFTCB230
- UPC: 786676025980
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Total Availability:
-
Price:
Cutler Hammer® Series BR Ground Fault Circuit Breaker, Residential, 120/240 VAC, 30 A, 10 kA Interrupt, Common, Thermal Magnetic Trip, 2 Poles, 14 - 4 AWG Aluminum/Copper Wire, Plug-On Clip Line, Lug Load Terminal, Loadcenter, Plug-On Mount, 60 - 75 deg C, 2-3/4 Inch L x 4-1/2 Inch W x 2 Inch H
| Series | : | Series BR |
| Commercial/Residential | : | Residential |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 30 A |
| Interrupt Rating | : | 10 kA |
| Trip Type | : | Common, Thermal Magnetic |
| Number of Poles | : | 2 |
| Wire Size | : | 14 - 4 AWG Aluminum/Copper |
| Terminal Type | : | Plug-On Clip Line, Lug Load |
| Mounting Type | : | Loadcenter, Plug-On |
| Temperature Rating | : | 60 - 75 deg C |
| Dimensions | : | 2-3/4 Inch L x 4-1/2 Inch W x 2 Inch H |
| Warranty | : | 10 Years |
- Two-pole GFTCBs are designed for use in three wire, 120/240 VAC circuits, 120 VAC multiwire circuits employing common, neutral and two-wire, 240 VAC circuits obtained from a 120/240 VAC source
- Requires two 1 Inch (25.4 mm) spaces
Standard/Approvals: Federal Spec Classification W-C375
