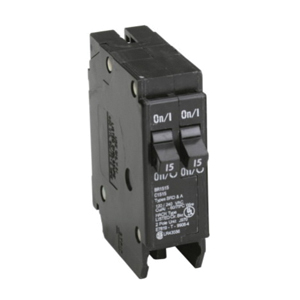

Cutler Hammer Series BR Circuit Breaker, Duplex, Light Commercial/Residential Commercial/Residential, 120/240 VAC, (2) 15 A, 10 kA Interrupt, Thermal Magnetic, Instantaneous Trip, 1 Pole, Toggle Handle Actuator, Plug-In, 14 - 4 AWG Aluminum/Copper Wire, Plug-On Mount, 60 to 75 deg C, 3 Inch L x 1 Inch W x 3 Inch H
| Type | : | Duplex |
| Series | : | Series BR |
| Commercial/Residential | : | Light Commercial/Residential |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | (2) 15 A |
| Interrupt Rating | : | 10 kA |
| Trip Type | : | Thermal Magnetic, Instantaneous |
| Number of Poles | : | 1 |
| Actuator Type | : | Toggle Handle |
| Connection Type | : | Plug-In |
| Wire Size | : | 14 - 4 AWG Aluminum/Copper |
| Mounting Type | : | Plug-On |
| Temperature Rating | : | 60 to 75 deg C |
| Dimensions | : | 3 Inch L x 1 Inch W x 3 Inch H |
- Operated by toggle-type handle
- The circuit breakers shall incorporate trip mechanisms that are mechanically trip-free from the handle
- Handle position provides visual trip position
- 1 phase
- Requires (1) 1 Inch (25.4 mm) spaces
- Non-CTL replacement circuit breakers
Standard/Approvals: Federal Specification Classification W-C375, UL 489
Application: Type BR Loadcenters
