Delta® T14293-RB

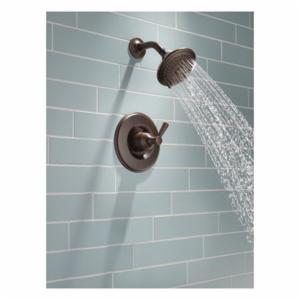

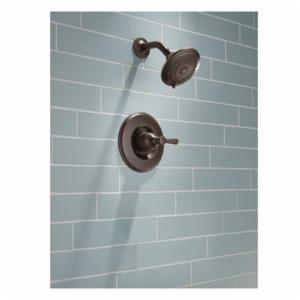

DELTA® Linden™, Monitor® 14, Traditional Shower Trim, 1-3/4 gpm, 4-15/16 Inch W, 2 gpm, Venetian® Bronze

DELTA® Shower Trim, Linden™, Monitor® 14, Traditional, 1-3/4 gpm, 6-1/2 Inch Spout Reach, Lever Handle, 1 Handle, Multi-Function Touch Clean® Shower Head, 2 gpm Shower Head, 4-15/16 Inch W Shower Head, Shower Head Spray Pattern: Full Body, Full Spray with Massage, Pause, Fast Massage, Soft Drenching, 5 Shower Head Spray Functions, Single-Function Pressure Balance Cartridge, Wall Mount, Solid Brass/Zinc, Venetian® Bronze, Includes: Valve Trim, Shower Arm and Shower Head

Series      :      Linden™, Monitor® 14, Traditional
Flow Rate      :      1-3/4 gpm
Spout Reach      :      6-1/2 Inch
Handle Style      :      Lever
Number of Handles      :      1
Shower Head Type      :      Multi-Function Touch Clean®
Shower Head Flow Rate      :      2 gpm
Shower Head Size      :      4-15/16 Inch W
Shower Head Spray Pattern      :      Full Body, Full Spray with Massage, Pause, Fast Massage, Soft Drenching
Number of Shower Head Spray Functions      :      5
Valve Type      :      Single-Function Pressure Balance Cartridge
Installation Type      :      Wall Mount
Material      :      Solid Brass/Zinc
Finish      :      Venetian® Bronze
Includes      :      Valve Trim, Shower Arm and Shower Head
Warranty      :      Lifetime Limited Parts, 5 Years Electronic Parts
  • Monitor pressure balance valve keeps water temperature within a safe +/-1.6 deg C, helping to protect you from sudden changes in hot or cold water pressure
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your showerhead and hand shower with the touch of a finger
  • Trim kit only, must order MultiChoice® Universal valve separately to complete the unit
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
  • For use with MultiChoice® Universal rough valve body
  • Back-to-back installation capability
  • Temperature only controlled with handle
  • Field adjustable to limit handle rotation into hot water zone
  • 120 deg maximum handle rotation
  • All parts replaceable from the front of the valve
  • 1.75 gpm at 80 psi, 6.6 L/min at 550 kPa
  • Stem extension kit RP77991 can be ordered to allow for an additional 1-3/4 Inch wall thickness. RP77991 ships with chrome escutcheon screws. for special finishes also order RP12630 escutcheon screws in desired finish

Standard/Approvals: ADA Compliant, ASME A112.18.1/CSA B125.1, ASSE 1016, ICC/ANSI A117.1
