Endot PGA10041010020-300

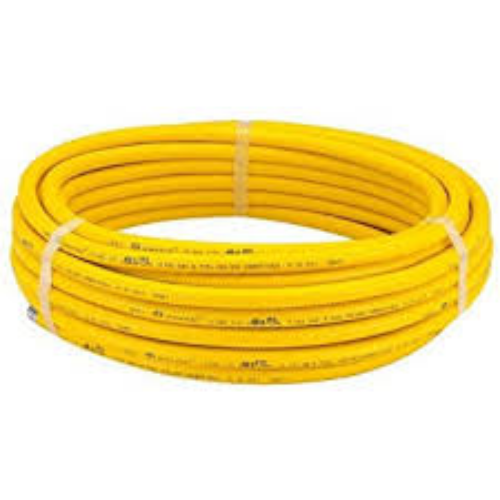

Endot PGA10041010020-300 Standard Gas Tubing, 1 Inch, 300 ft L, 100 psi, Polyethylene, Yellow, 1.07 Inch ID

  • Manufacturers: Endot Industries
  • Brand Name: Endot
  • CPEPN: PGA10041010020-300
  • MPN: PGA10041010020-300
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
  • This item does not qualify for free shipping

Endot Gas Tubing, Standard, 1 Inch Nominal, 1.07 Inch Inside Dia, 1.315 Inch Outside Dia, 300 ft Length, 0.119 Inch Wall Thickness, 100 psi Working, 20 - 140 deg F, Polyethylene, Material Specification: ASTM D-3350/D-2513, Yellow

Type      :      Standard
Nominal Size      :      1 Inch
Inside Diameter      :      1.07 Inch
Outside Diameter      :      1.315 Inch
Length      :      300 ft
Wall Thickness      :      0.119 Inch
Working Pressure      :      100 psi
Temperature Rating      :      20 - 140 deg F
Material      :      Polyethylene
Material Specification      :      ASTM D-3350/D-2513
Color      :      Yellow
  • Endot Yellow Gas Pipe is UV stabilized for outdoor storage prior to installation with a minimum of 3 years UV stability

Standard/Approvals:ASTM D1248, D-2515, NSF Certified

Application: For natural gas and liquid propane distribution
