Cutler-Hammer BR270
Send Print
  1. pin-int

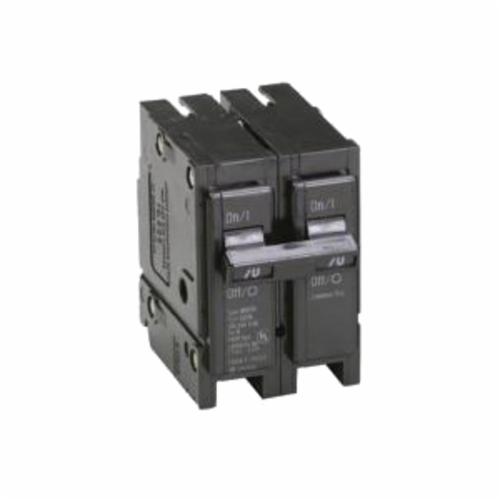

Cutler-Hammer BR270

Cutler-Hammer Series BR Circuit Breaker, 120/240 VAC, 70 A, 10 kA Interrupt, 2 Pole Common/Thermal-Magnetic Trip

Cutler-Hammer Circuit Breaker, Series: Series BR, Light Commercial/Residential, 120/240 VAC, 70 A, 10 kA Interrupt, Common/Thermal-Magnetic Trip, 2 Pole, Toggle Handle Actuator, 8 - 1/0 AWG Aluminum/Copper Wire, Plug-On Mount, 60 to 75 deg C, 3 Inch L x 2 Inch W x 3 Inch H

Series      :      Series BR
Commercial/Residential      :      Light Commercial/Residential
Voltage Rating      :      120/240 VAC
Amperage Rating      :      70 A
Interrupt Rating      :      10 kA
Trip Type      :      Common/Thermal-Magnetic
Number of Poles      :      2
Actuator Type      :      Toggle Handle
Wire Size      :      8 - 1/0 AWG Aluminum/Copper
Mounting Type      :      Plug-On
Temperature Rating      :      60 to 75 deg C
Dimensions      :      3 Inch L x 2 Inch W x 3 Inch H
  • Used with type BR loadcenters
  • Handle position provides visual trip position

Standard/Approvals:Federal Specifications Classification W-C375, UL 489

  • pdfCatalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BR270_Catalog.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BR270_Specification_Sheet.pdf
