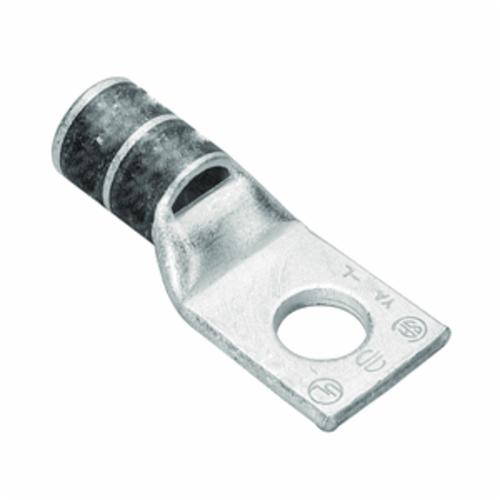

BURNDY® YA8CLBOX

BURNDY® HYLUG™ Compression Lug, 6 AWG, NO 8/NO 10 Stud, Stranded/Solid Conductor, 600 - 35000 VAC

BURNDY® Compression Lug, Series: HYLUG™ , 6 AWG Conductor, NO 8/NO 10 Stud, Stranded/Solid Conductor, 600 - 35000 VAC, Terminal, Red, Copper, Straight/Standard Tongue, Chamfered/Standard/Short, 0.41 Inch W Pad, 1 Bolt Hole, 0.27 Inch Dia x 1.16 Inch L, 90 deg C

Series      :      HYLUG™
Conductor Size      :      6 AWG
Stud Size      :      NO 8/NO 10
Conductor Type      :      Stranded/Solid
Voltage Rating      :      600 - 35000 VAC
Connection Type      :      Terminal
Color      :      Red
Material      :      Copper
Tongue Style      :      Straight/Standard
Barrel Style      :      Chamfered/Standard/Short
Pad Size      :      0.41 Inch W
Number of Bolt Holes      :      1
Dimensions      :      0.27 Inch Dia x 1.16 Inch L
Temperature Rating      :      90 deg C
  • 49 die index
  • Tin electro plated
  • 35 kV rating
  • 0.2 Inch bolt
  • 7/16 Inch strip
  • With inspection window

Standard/Approvals:CSA Certified, RoHS Compliant, UL Listed

  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA8CLBOX_Specification_Sheet.pdf
  • pdfTechnical Drawing https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA8CLBOX_Technical_Drawing.pdf
