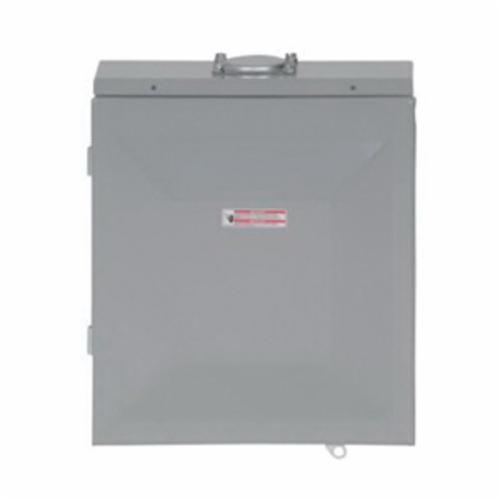

Cutler-Hammer BR816L125RP

Cutler-Hammer Series BR Main Lug Loadcenter, 120/240 VAC, 125 A, 1 Phase, 16 Circuits, 10 kA Interrupt, 8 Spaces

  • Manufacturers: Eaton
  • Brand Name: Cutler-Hammer
  • CPEPN: BR816L125RP
  • MPN: BR816L125RP
  • UPC: 786676001472
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability

Cutler-Hammer Main Lug Loadcenter, Series: Series BR, 120/240 VAC, 125 A, 1, 10 kA Interrupt, 16 Circuits, 3-Wire Wiring Configuration, Aluminum Bus, 8 Spaces, 14 - 1 AWG Aluminum/Copper Wire, Top/Bottom Feed, Surface Mount, NEMA 3R Outdoor, 7r Enclosure Box, Metallic Housing, 3-9/16 Inch L x 11 Inch W x 13 Inch H, Includes: Hub Closure Plate

Series      :      Series BR
Voltage Rating      :      120/240 VAC
Amperage Rating      :      125 A
Number of Phases      :      1
Interrupt Rating      :      10 kA
Number of Circuits      :      16
Wiring Configuration      :      3-Wire
Bus Material      :      Aluminum
Number of Spaces      :      8
Wire Size      :      14 - 1 AWG Aluminum/Copper
Feed Type      :      Top/Bottom
Mounting Type      :      Surface
Enclosure Type      :      NEMA 3R Outdoor
Enclosure Box Size      :      7r
Housing Material      :      Metallic
Dimensions      :      3-9/16 Inch L x 11 Inch W x 13 Inch H
Includes      :      Hub Closure Plate
Warranty      :      10 Years
  • Larger knockout provides easier installation and time savings for renovation installations
  • Straight in wiring saves labor and material
  • Optional convertible design reduces inventory requirements
  • Easily removable lugs and can be installed in any location on the neutral bar
  • Drywall marking on enclosure indicates proper mounting depth for flush applications
  • Steel backpan provides solid and reliable breaker mounting single piece design for stability and durability
  • Advanced electronics effectively reduce nuisance tripping
  • Suitable for use as service equipment when a main breaker is used or when not more than six service disconnecting mains are provided

Standard/Approvals:UL 67/50

  • pdfCatalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BR270_Catalog.pdf
  • pdfInstallation Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BR1224L125G_Installation_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BR816L125RP_Specification_Sheet.pdf
