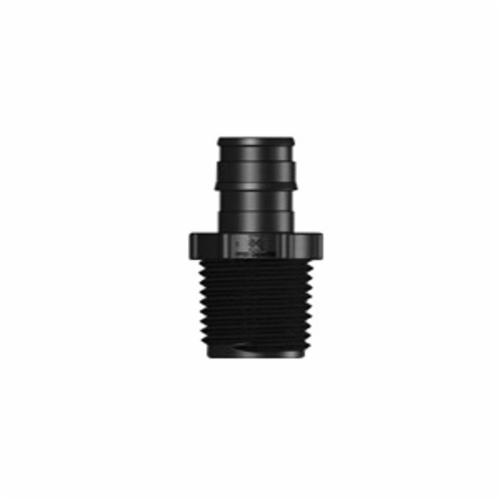

Sioux Chief 646WP2

Sioux Chief PowerPEX® Straight Straight Adapter, 1/2 Inch MNPT x F1960 PEX Grip™, 100 psi, Polymer, 1.64 Inch L, Peroxide/Silane Graft, 180 deg F

  • Manufacturers: Sioux Chief Mfg
  • Brand Name: Sioux Chief
  • CPEPN: 12EPPOLYMIP
  • MPN: 646WP2
  • UPC: 739236423924
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability

Sioux Chief PowerPEX® Straight Adapter, Straight, 1/2 Inch, MNPT x F1960 PEX Grip™, 1.64 Inch Length, 100 psi Working, Peroxide/Silane Graft, Polymer, ASTM F876, ASTM F877, ASTM F1807, ASTM F2080, ASTM F2159, 180 deg F, 1/2 Inch W

Type      :      Straight
Nominal Size      :      1/2 Inch
End Style      :      MNPT x F1960 PEX Grip™
Length      :      1.64 Inch
Working Pressure      :      100 psi
Method of Manufacture      :      Peroxide/Silane Graft
Material      :      Polymer
Industry Standards      :      ASTM F876, ASTM F877, ASTM F1807, ASTM F2080, ASTM F2159
Temperature Rating      :      180 deg F
Dimensions      :      1/2 Inch W
Warranty      :      25 Years
  • The Sioux Chief F1960 fitting system is engineered to be high quality in design
  • The Sioux Chief F1960 fitting system is a full flow pex expansion system

Standard/Approvals: NSF-61

Application: For use with PEX-B or PEX-A tube

  • pdfBrochure https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Sioux_Chief_649W2_Brochure_1.pdf
  • pdfBrochure https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Sioux_Chief_649W2_Brochure_2.pdf
  • pdfInstallation https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Sioux_Chief_664X2W20_Instruction_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Sioux_Chief_649W2_Spec_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Sioux_Chief_649W2_Spec_Sheet_1.pdf
