Sioux Chief 647WG2E3PK1

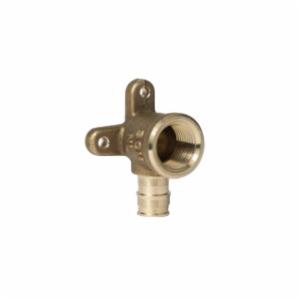

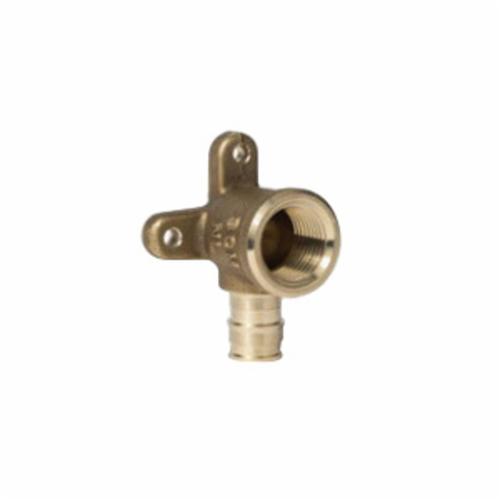

Sioux Chief PowerPEX® Drop-3-Ear Elbow, 1/2 Inch FNPT x F1960 PEX Grip™, 100 psi, Brass, Peroxide/Silane Graft, 180 deg F

  • Manufacturers: Sioux Chief Mfg
  • Brand Name: Sioux Chief
  • CPEPN: 647WG2E3PK1
  • MPN: 647WG2E3PK1
  • UPC: 739236419132
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability

Sioux Chief PowerPEX® Drop-3-Ear Elbow, 1/2 Inch, FNPT x F1960 PEX Grip™, 100 psi Working, Peroxide/Silane Graft, Brass, ASTM F876, ASTM F877, ASTM F1807/ASTM F2080/ASTM F2159, 180 deg F, 1.75 Inch W x 1.33 Inch H

Nominal Size      :      1/2 Inch
End Style      :      FNPT x F1960 PEX Grip™
Working Pressure      :      100 psi
Method of Manufacture      :      Peroxide/Silane Graft
Material      :      Brass
Industry Standards      :      ASTM F876, ASTM F877, ASTM F1807/ASTM F2080/ASTM F2159
Temperature Rating      :      180 deg F
Dimensions      :      1.75 Inch W x 1.33 Inch H
Warranty      :      25 Years
  • The Sioux Chief F1960 fitting system is engineered to be high quality in design
  • The Sioux Chief F1960 fitting system is a full flow pex expansion system

Standard/Approvals: NSF-61

Application: For use with PEX-B or PEX-A Tube and Tub Shower

  • pdfBrochure https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Sioux_Chief_649W2_Brochure_1.pdf
  • pdfBrochure https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Sioux_Chief_649W2_Brochure_2.pdf
  • pdfInstallation https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Sioux_Chief_664X2W20_Instruction_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Sioux_Chief_649W2_Spec_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Sioux_Chief_649W2_Spec_Sheet_1.pdf
