Sioux Chief 664X3R20

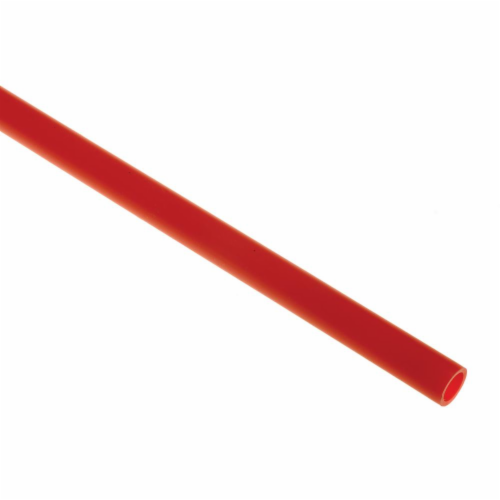

Sioux Chief PowerPEX® 664X Type B Barrier PEX Tubing, 3/4 Inch, 20 ft Stick L, 160 psi, Polyethylene, 0.671 Inch ID x 7/8 Inch OD, 0.097 Inch T, 73 deg F, Silane Graft, Red

  • Manufacturers: Sioux Chief Mfg
  • Brand Name: Sioux Chief
  • CPEPN: 664X3R20
  • MPN: 664X3R20
  • UPC: 739236421449
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
  • This item does not qualify for free shipping

Sioux Chief PowerPEX® PEX Tubing, Type B Barrier, Series: 664X, 3/4 Inch, 0.671 Inch Inside Dia, 7/8 Inch Outside Dia, 20 ft Stick Length, 0.097 Inch Wall Thickness, 160 psi Working, 73 deg F, Silane Graft, Polyethylene, Red, ASTM F876, ASTM F877, ASTM F1807, ASTM F2080, ASTM F2159

Type      :      Type B Barrier
Series      :      664X
Nominal Size      :      3/4 Inch
Inside Diameter      :      0.671 Inch
Outside Diameter      :      7/8 Inch
Length      :      20 ft Stick
Wall Thickness      :      0.097 Inch
Working Pressure      :      160 psi
Temperature Rating      :      73 deg F
Method of Manufacture      :      Silane Graft
Material      :      Polyethylene
Color      :      Red
Industry Standards      :      ASTM F876, ASTM F877, ASTM F1807, ASTM F2080, ASTM F2159
Warranty      :      25 Years

Sioux Chief has updated the PowerPEX® type B tubing print line and warranty to include and cover its use with ASTM F1960 expansion fittings for tubing sizes 3/8 - 2 Inch. All PowerPEX® type B tubing with a 2018 date code or later can be used with ASTM F1960 fittings. ASTM F1960 connections with PowerPEX® type B tubing must be made with a self rotating, power expansion tool.

  • Sioux chief has thoroughly tested powerpex® type b tubing with ASTM F1960 brass and polymer fittings
  • Self-rotating power expansion tools are designed to automatically expand the tubing at the proper rate
  • Chlorine and UV resistance
  • Tubing used in hot and cold potable water distribution or for approved non-potable system applications

Standard/Approvals: NSF-14/61, cNSFus-PW

Application: Plumbing, Radiant, Fire Suppression, Geothermal, Water Reclamation, Turf Conditioning, Irrigation, Residential and Commercial and Industrial Applications
