Cutler-Hammer BRN120DF
Send Print
  1. pin-int

Cutler-Hammer BRN120DF

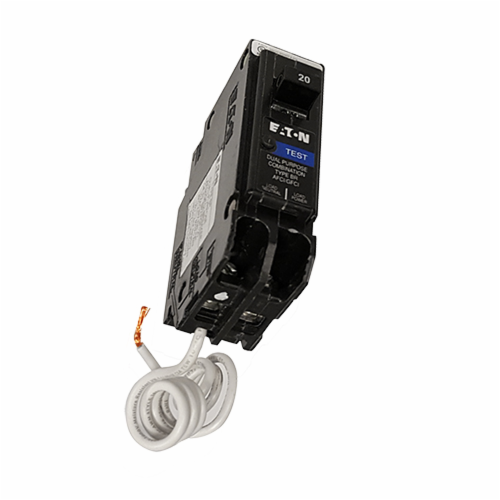

Cutler-Hammer BRN120DF Type BR Dual Function AFCI/GFCI Electronic Circuit Breaker, 120 VAC, 20 A, 10 kAIC Interrupt, 1 Pole, 14 - 4 AWG Copper/Aluminum Wire, Pigtail Mount, 60/70 deg C

  • Manufacturers: Eaton
  • Brand Name: Cutler-Hammer
  • CPEPN: BRN120DF
  • MPN: BRN120DF
  • UPC: 786689059699
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

Cutler-Hammer Electronic Circuit Breaker, Type BR, Dual Function AFCI/GFCI, 120 VAC, 20 A, 10 kAIC Interrupt, 1 Pole, 14 - 4 AWG Copper/Aluminum Wire, Pigtail Mount, 60/70 deg C, 2.9 Inch L x 0.9 Inch H x 2.9 Inch W, Includes: LED Diagnostics

Type      :      Type BR, Dual Function AFCI/GFCI
Voltage Rating      :      120 VAC
Amperage Rating      :      20 A
Interrupt Rating      :      10 kAIC
Number of Poles      :      1
Wire Size      :      14 - 4 AWG Copper/Aluminum
Mounting Type      :      Pigtail
Temperature Rating      :      60/70 deg C
Dimensions      :      2.9 Inch L x 0.9 Inch H x 2.9 Inch W
Includes      :      LED Diagnostics
  • 1 Inch breaker
  • Pigtail neutral
  • The short-body BR electronic circuit breakers are optimized to save gutter space and installation time with an easier, more succinct installation process
  • Unique self-leveling tabs to allow for quick drywall offset
  • Added keyhole hanging feature on cover for ease of installation
  • Common drive types on screw connections for added simplicity and convenience
  • Inboard neutral to increase the gutter space for easier installation of conductors
  • Backed-out neutral screws to allow for a quick connection of ground and neutral conductors
  • Upgraded to embossed circuit numbers for a more clean and professional look

Standard/Approvals:UL Listed

  • pdfCatalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BRN115AF_Catalog.pdf
  • pdfCatalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_BRN115AF_Catalog_1.pdf
