Cutler-Hammer CHFGFT115PN
Send Print
  1. pin-int

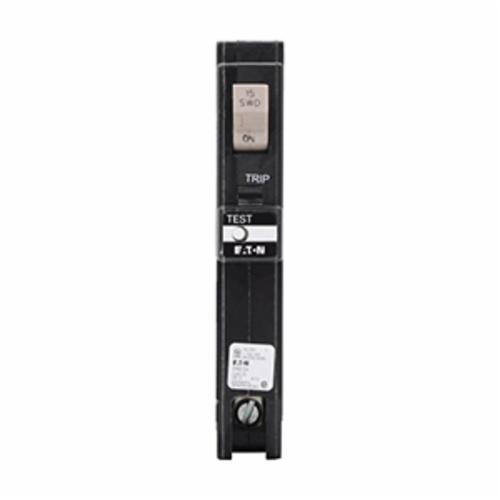

Cutler-Hammer CHFGFT115PN

Cutler-Hammer CHF Type CH Ground Fault Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 1 Pole Thermal Magnetic Trip, 14 - 6 AWG Copper/Aluminum Wire, Plug-On Mount, 40 deg C

  • Manufacturers: Eaton
  • Brand Name: Cutler-Hammer
  • CPEPN: CHFGFT115PN
  • MPN: CHFGFT115PN
  • UPC: 786680117534
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading
    • This item does not qualify for free shipping

Cutler-Hammer Ground Fault Circuit Breaker, Type CH, Series: CHF, Residential, 120 VAC, 15 A, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 14 - 6 AWG Copper/Aluminum Wire, Plug-On Mount, 40 deg C, 3-1/2 Inch L x 1 Inch W x 3 Inch H

Type      :      Type CH
Series      :      CHF
Commercial/Residential      :      Residential
Voltage Rating      :      120 VAC
Amperage Rating      :      15 A
Interrupt Rating      :      10 kA
Trip Type      :      Thermal Magnetic
Number of Poles      :      1
Wire Size      :      14 - 6 AWG Copper/Aluminum
Mounting Type      :      Plug-On
Temperature Rating      :      40 deg C
Dimensions      :      3-1/2 Inch L x 1 Inch W x 3 Inch H

Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip free handle design. Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multipole breakers have internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

  • 5 mA protection per UL® 943
  • Time savings up to 25% per GFCI installation
  • Improved wireway access
  • Easier troubleshooting due to less wiring
  • Eliminates unwanted tripping due to loose pigtail connections
  • With flag
  • pdfBrochure https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_CHFCAF115PN_Brochure.pdf
  • pdfCatalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_CHFCAF115PN_Catalog.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_CHFGFT115PN_Specification_Sheet.pdf
