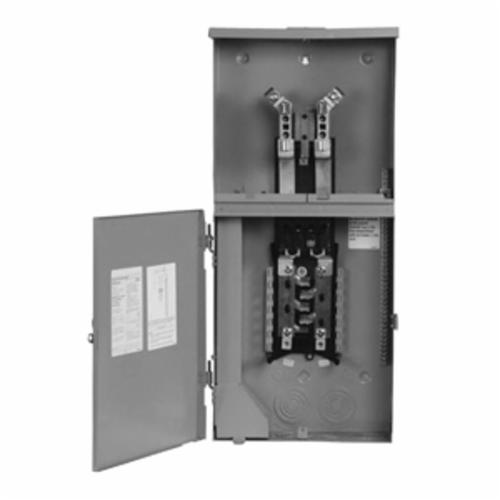

Siemens MC0816B1200RCT

Siemens Combination Ringless Meter/Load Center, 120/240 VAC, 200 A, 1 Phase, 16 Circuits, 22 kA Interrupt, 8 Spaces, Overhead/Underground Feed, NEMA 3R, G90 Galvanized Steel Housing

  • Manufacturers: Siemens AG
  • Brand Name: Siemens
  • CPEPN: MC0816B1200RCT
  • MPN: MC0816B1200RCT
  • UPC: 783643510708
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
  • This item does not qualify for free shipping

Siemens Meter/Load Center, Combination Ringless, 120/240 VAC, 200 A, 1 Phase, 22 kA Interrupt, 16 Circuits, 8 Spaces, Overhead/Underground Feed, NEMA 3R, G90 Galvanized Steel Housing, 32 Inch H x 13.97 Inch W x 5.06 Inch D

Type      :      Combination Ringless
Voltage Rating      :      120/240 VAC
Amperage Rating      :      200 A
Number of Phases      :      1
Interrupt Rating      :      22 kA
Number of Circuits      :      16
Number of Spaces      :      8
Feed Type      :      Overhead/Underground
Enclosure Type      :      NEMA 3R
Housing Material      :      G90 Galvanized Steel
Dimensions      :      32 Inch H x 13.97 Inch W x 5.06 Inch D
  • NEMA Type 3R enclosure with painted, G90 galvanized steel
  • Surface mounting, pole mountable
  • Feed thru lugs provided
  • Key hole shaped mounting holes for easy hanging
  • Deadfront pull ring
  • Captive deadfront screw
  • Visible neutrals
  • Tin plated copper bus bars
  • Side-hinged load center door requires the removal of only one screw to remove door

Standard/Approvals: UL Listed
