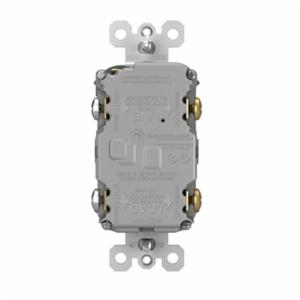

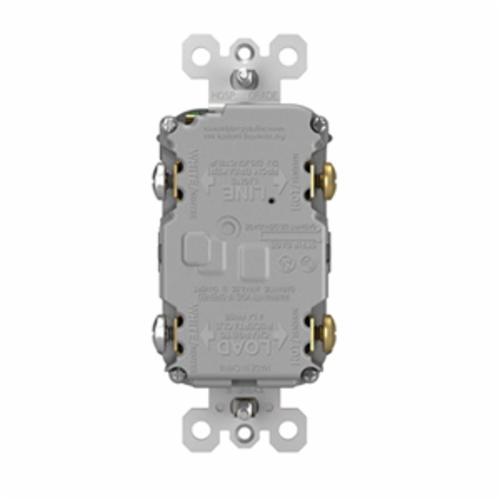

Pass & Seymour® 2097-TRBK

Pass & Seymour® 2097-TRBK Self-Test Specification Grade Tamper-Resistant Duplex GFCI Receptacle, 2 Pole, 3 Wires, 14 - 10 AWG, 20 A, 125 VAC, 60 Hz, NEMA 5-20R, Screw, Back Wired Terminal, Flush/Wall Mount, Auto Grounding, Thermoplastic, Black

  • Manufacturers: Legrand
  • Brand Name: Pass & Seymour®
  • CPEPN: 2097-TRBK
  • MPN: 2097-TRBK
  • UPC: 078500703576
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability

The Radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. Make sure you can spot ground fault trips quickly and resolve them easily with GFCI Receptacles installed in the living space.

Pass & Seymour® Duplex GFCI Receptacle, Self-Test Specification Grade Tamper-Resistant, Commercial/Residential, 2 Pole, 3 Wires, 14 - 10 AWG Wire, 20 A, 125 VAC, 60 Hz, NEMA 5-20R, Screw, Back Wired Terminal, Flush/Wall Mount, Auto Grounding Style, 4.19 Inch H x 1.62 Inch W x 1.13 Inch D, Thermoplastic, Black, Gloss

Type      :      Self-Test, Specification Grade, Tamper-Resistant
Commercial/Residential      :      Commercial/Residential
Number of Poles      :      2
Number of Wires      :      3
Wire Size      :      14 - 10 AWG
Amperage Rating      :      20 A
Voltage Rating      :      125 VAC
Frequency Rating      :      60 Hz
Enclosure Type      :      NEMA 5-20R
Terminal Type      :      Screw, Back Wired
Mounting Type      :      Flush/Wall
Grounding Style      :      Auto
Dimensions      :      4.19 Inch H x 1.62 Inch W x 1.13 Inch D
Material      :      Thermoplastic
Color      :      Black
Finish      :      Gloss
  • New external back wire pressure easier installation - plates with posted terminal screws for faster installation
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect, if the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced
  • Equipped with proven SafeLock™ protection feature - if critical components are damaged and protection is lost, power to the receptacle is disconnected
  • Protects children - patented shutter system helps prevent improper insertion of foreign objects meeting National Electrical Code® tamper-resistant requirements
  • Redesigned side wire cavity improves speed of side wire installation
  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles
  • Prevents line-load reversal miswire - no power to the face or downstream receptacles if wired incorrectly
  • Now with black "invisi-shutters" for an invisible effect preferred by end users
  • Captive screws make for easier installation
  • Ground terminal clamp allows for fast installation
  • High impact-resistant, thermoplastic construction for superior strength and durability
  • The indicator light flashes if the device fails the self-test, signaling that the GFCI should be replaced
  • Auto-ground clip assures a positive ground to metal box
