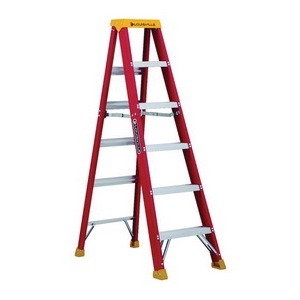

Louisville® L-3016-06

Louisville® L-3016-06 Step Ladder, 124 Inch Reach Height, 300 lb Load Capacity, 5 Standard Rungs, Fiberglass/Aluminum

  • Manufacturers: Louisville Ladder
  • Brand Name: Louisville®
  • CPEPN: L-3016-06
  • MPN: L-3016-06
  • UPC: 728865108494
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability

This Louisville® 6 foot non-conductive fiberglass step ladder has a load capacity of 300 lb, rated ANSI type IA. This ladder is equipped with a molded top with handyman's tool slots, heavy duty gusset bracing, slip-resistant boot, inside spreader braces, wide back braces and double-rivet step construction. The Louisville® L-3016-06 step ladder meets or exceeds the safety standards set by ANSI, CSA and OSHA.

Louisville® Step Ladder, Series: Series L-3016, 124 Inch Reach Height, 300 lb, 12 Inch Adjustable Increments, 5 Rungs, Standard Rung, 3 Inch D Rung, 40-3/8 Inch Base Spread, 21-1/4 Inch Base Width, Duty Rating: Type IA, 6 ft L, Fiberglass/Aluminum

Series      :      Series L-3016
Reach Height      :      124 Inch
Load Capacity      :      300 lb
Adjustable Increments      :      12 Inch
Number of Rungs      :      5
Rung Type      :      Standard
Rung Size      :      3 Inch D
Base Spread      :      40-3/8 Inch
Base Width      :      21-1/4 Inch
Duty Rating      :      Type IA
Dimensions      :      6 ft L
Material      :      Fiberglass/Aluminum
  • 45 Inch maximum standing height
  • 4.42 cu-ft open volume
  • 22.5 Inch open width
  • 22 Inch close width
  • 68.31 Inch open height
  • 73 Inch closed height
  • 40.56 Inch open depth
  • 7 Inch closed depth
  • 13.23 Inch top width closed
  • pdfCatalog Louisville_L_3016_06_Catalog.pdf
