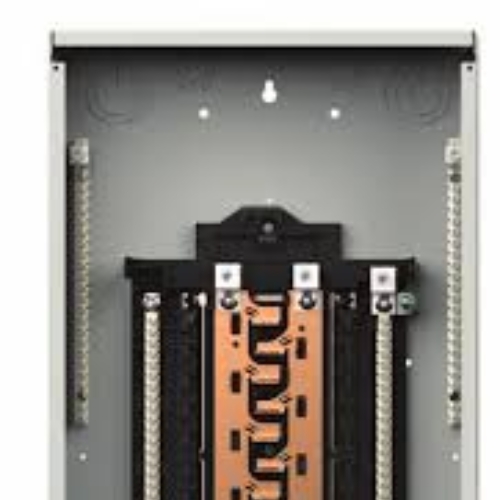

Siemens PNW3048B1200C

Siemens PNW3048B1200C READY PRO Series, PNW Series Convertible, Low Voltage, Neutral Main Breaker Loadcenter, 120/240 V, 200 A, 1 Phase, 48 Circuits, 22 kA Interrupt, Plug-On Breaker Mounting, 3-Wire Wiring Configuration, Copper Bus, 30 Spaces

  • Manufacturers: Siemens
  • Brand Name: Siemens
  • CPEPN: PNW3048B1200C
  • MPN: PNW3048B1200C
  • UPC: 804766703140
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
  • This item does not qualify for free shipping

Siemens Main Breaker Loadcenter, Convertible, Low Voltage, Neutral, Series: READY PRO Series, PNW Series, 120/240 V, 200 A, 1, 22 kA Interrupt, 48 Circuits, Plug-On Breaker Mounting, 3-Wire Wiring Configuration, Copper Bus, 30 Spaces, Combination Mount, NEMA 3R/Outdoor, 36.62 Inch H x 15.5 Inch W x 5 Inch D, Gray Trim, Includes: (2) Ground Bar

Type      :      Convertible, Low Voltage, Neutral
Series      :      READY PRO Series, PNW Series
Voltage Rating      :      120/240 V
Amperage Rating      :      200 A
Number of Phases      :      1
Interrupt Rating      :      22 kA
Number of Circuits      :      48
Breaker Mounting      :      Plug-On
Wiring Configuration      :      3-Wire
Bus Material      :      Copper
Number of Spaces      :      30
Mounting Type      :      Combination
Enclosure Type      :      NEMA 3R/Outdoor
Dimensions      :      36.62 Inch H x 15.5 Inch W x 5 Inch D
Color      :      Gray Trim
Includes      :      (2) Ground Bar
  • Invertible for bottom feed application
  • All devices are provided with 2 factory installed ground bars
  • Combination head screw on the neutrals, ground, trim, upper pan and bond screw provide installation flexibility
  • A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
  • The outdoor enclosure has a slide hinge door for the easiest installation and can be removed by backing out only one screw
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • The prepositioned bond screw eliminates bond strap/screw assemblies and reduces the risk of losing components in the field
  • The patented INSTA-WIRE™ neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
  • The visible neutral and grounds system aids in the insertion of conductors
