Cutler-Hammer CHP24B200R

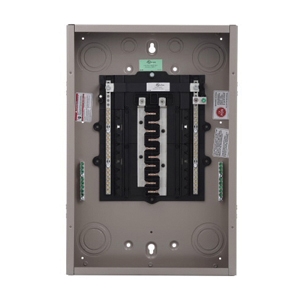

Cutler-Hammer CHP24B200R 3-Wire Type CH Rainproof Main Breaker Loadcenter, 120/240 VAC, 200 A, 1 Phase, 48 Circuits, CSR Circuit Breaker, 25 kA Interrupt, Panel Breaker Mounting, Copper Bus, 24 Spaces, 2 AWG - 300 kcmil Wire, Overhead Feed

  • Manufacturers: Eaton
  • Brand Name: Cutler-Hammer
  • CPEPN: CHP24B200R
  • MPN: CHP24B200R
  • UPC: 786689058609
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
  • This item does not qualify for free shipping

Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Cutler-Hammer Main Breaker Loadcenter, 3-Wire Type CH Rainproof, 120/240 VAC, 200 A, 1, 25 kA Interrupt, 48 Circuits, CSR Circuit Breaker Type, Panel Breaker Mounting, Copper Bus, 24 Spaces, 2 AWG - 300 kcmil Wire, Overhead Feed, Keyhole/Panel Mount, NEMA 3R, X5/E Enclosure Box, Metallic Housing, 29 Inch L x 14.31 Inch W x 5.19 Inch H, Includes: Cover

Type      :      3-Wire Type CH Rainproof
Voltage Rating      :      120/240 VAC
Amperage Rating      :      200 A
Number of Phases      :      1
Interrupt Rating      :      25 kA
Number of Circuits      :      48
Circuit Breaker Type      :      CSR
Breaker Mounting      :      Panel
Bus Material      :      Copper
Number of Spaces      :      24
Wire Size      :      2 AWG - 300 kcmil
Feed Type      :      Overhead
Mounting Type      :      Keyhole/Panel
Enclosure Type      :      NEMA 3R
Enclosure Box Size      :      X5/E
Housing Material      :      Metallic
Dimensions      :      29 Inch L x 14.31 Inch W x 5.19 Inch H
Includes      :      Cover
  • Plug-on neutral design
  • Optimized knockouts- provide additional access and allow for easier removal improving installation times
  • Top or bottom feed- straight-in wiring saves labor and material
  • One panel for either top or bottom applications
  • Smooth case edges- provide a more professional look and feel
  • 2/0 AWG lug- easily removable and can be installed in any location on the neutral bar
  • Full length neutral bars- offer flexibility of placing electronic breakers at any space within the panel
  • Offer easy installation of neutral connection time and labor savings
  • Inboard neutral- increases gutter space to allow for the installation of conductors
  • One piece silver flashed copper bus- provides superior conductivity, corrosion resistance and durability
  • Drywall offsets- allow for faster installation using predetermined self-leveling tabs
  • Steel back pan- provides solid and reliable breaker mounting, single piece design for stability and durability
  • "Tangential" center knockout- easier installation for conduit applications
  • Unique sandalwood finish- aesthetically appealing, scratch-resistant powder coating
  • Allow for easy installation of neutral wire connection
  • Plug-on neutral- eliminates the pigtail connection providing time and labor savings
  • Provides a professional installation
  • Easier to remove twistouts
  • Rainproof panels are furnished with hub closure plates
  • pdfCatalog https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_CHP24B200R_Catalog.pdf
