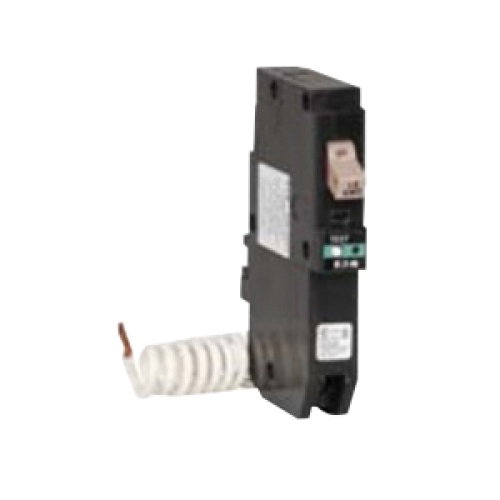

Cutler-Hammer CHFN115AF
Cutler-Hammer CHFN115AF Combination Arc Fault Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 1 Pole Thermal Magnetic Trip, Commercial/Residential, CH Frame, Pigtail, 14 - 4 AWG Wire, Plug-On Mount
- Manufacturers: Eaton
- Brand Name: Cutler-Hammer
- CPEPN: CHFN115AF
- MPN: CHFN115AF
- UPC: 786689058814
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Total Availability:
-
Price:
An arc fault circuit interrupter is a device intended to provide protection from the effects of arc faults by recognizing characteristics unique to arcing and by functioning to de-energize the circuit when the arc fault is detected.
Cutler-Hammer Arc Fault Circuit Breaker, Combination, Commercial/Residential, 120/240 VAC, 15 A, 10 kA Interrupt, CH Frame, Thermal Magnetic Trip, 1 Pole, Pigtail, 14 - 4 AWG Wire, Plug-On Mount, 3/4 Inch W
| Type | : | Combination |
| Commercial/Residential | : | Commercial/Residential |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 15 A |
| Interrupt Rating | : | 10 kA |
| Frame | : | CH |
| Trip Type | : | Thermal Magnetic |
| Number of Poles | : | 1 |
| Connection Type | : | Pigtail |
| Wire Size | : | 14 - 4 AWG |
| Mounting Type | : | Plug-On |
| Dimensions | : | 3/4 Inch W |
- Plug-on neutral style for plug-on neutral type CH loadcentres
