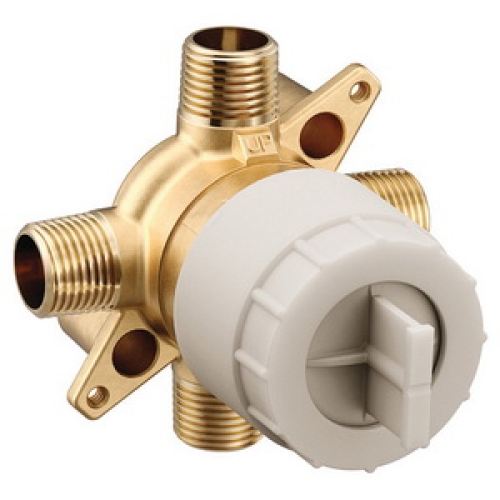

Moen® Rough-In Valve, Series: M-CORE™, 1/2 Inch Nominal, CC/IPS, 1.3 gpm, 200 psi, 4 Ports, Wall, Brass, 3-5/8 Inch W, Includes: Adjustable Temp Limit Stop and Test Plug
| Series | : | M-CORE™ |
| Nominal Size | : | 1/2 Inch |
| Connection Type | : | CC/IPS |
| Flow Rate | : | 1.3 gpm |
| Pressure Rating | : | 200 psi |
| Number of Ports | : | 4 |
| Installation Type | : | Wall |
| Material | : | Brass |
| Dimensions | : | 3-5/8 Inch W |
| Includes | : | Adjustable Temp Limit Stop and Test Plug |
- M-CORE™ cartridge included with the trim kit
- Built on the Moen® M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
- Shower outlet matches inlet connection type
- Supplied flush plug allows testing up to 200 psi with air (300 psi water)
- Installation in thin or thick wall applications
Installation Sheet
