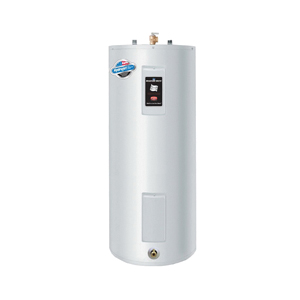

Bradford White® Electric Water Heater, Upright, Series: Hydrojet®, 3/4 Inch NPT, 55 gal Tank, 21 gph at 90 deg F Recovery, Magnesium Anode Rod Heating Element, Surface Mount, 3/4 Inch NPT Water Connection, 1600 deg F, Steel, Vitraglas®, 58-3/16 Inch L x 23 Inch W, Includes: T and P Relief Valve
Type |
: |
Upright |
Series |
: |
Hydrojet® |
Electrical Connection |
: |
3/4 Inch NPT |
Tank Capacity |
: |
55 gal |
Recovery Rate |
: |
21 gph at 90 deg F |
Heating Element |
: |
Magnesium Anode Rod |
Mounting Type |
: |
Surface |
Water Connection |
: |
3/4 Inch NPT |
Temperature Rating |
: |
1600 deg F |
Material |
: |
Steel |
Finish |
: |
Vitraglas® |
Dimensions |
: |
58-3/16 Inch L x 23 Inch W |
Includes |
: |
T and P Relief Valve |
- Fully automatic controls- fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
- Low restrictive brass drain valve - durable tamper-proof design
- Direct heat transfer with immersed elements - transfers heat directly and efficiently to the water, screw-in style
- Factory installed Hydrojet® total performance system-sediment reducing device that also increases first hour delivery of hot water while minimizing temperature build-up in tank
- Vitraglas® lining- an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot wate
- This formula (Vitraglas®) is fused to the steel surface by firing at a temperature of over 1600 deg F (871 deg C)
- Insulation system - non-CFC foam covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies and jacket rigidity
- Blanketed models additionally use a supplied flexible fiberglass insulation blanket
- 3/4 Inch (19 mm) NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
- Factory installed heat traps- design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation
- Protective magnesium anode rod- provides added protection against corrosion for long-term, trouble-free service
- 55 gal DOE rated storage volume
- 0.93 uniform energy factor
- 75 gal first hour delivery
-
