Oatey® 39140

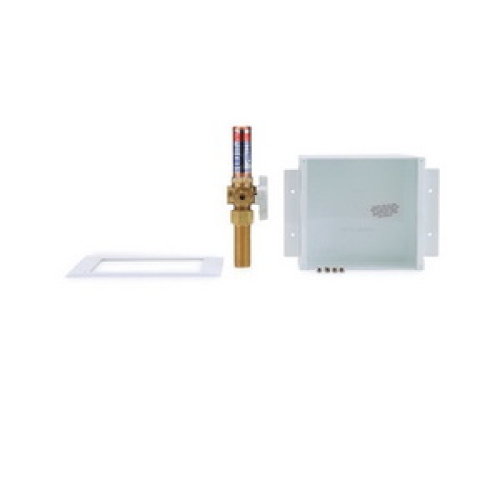

Oatey® Brass Ball Valve Ice Maker Outlet Box, Copper Inlet Connection, 5 Inch H x 5-1/2 Inch W x 2-1/2 Inch D Box, Steel

Oatey® metal ice maker outlet boxes can be used in applications requiring supply valves recessed into a wall. Unit shall allow for the mounting of supply lines from top or bottom on the left or right side. Unit shall be available with 1/4 turn brass ball valves in configurations with and without water hammer arrestors.

Oatey® Ice Maker Outlet Box, Copper Inlet Connection, 5 Inch H x 5-1/2 Inch W x 2-1/2 Inch D Box, 6-3/4 Inch H x 6-3/4 Inch W Faceplate Size, Brass Ball Valve, Steel, White, Includes: Nailplate Support Brackets

Inlet Connection      :      Copper
Box Size      :      5 Inch H x 5-1/2 Inch W x 2-1/2 Inch D
Faceplate Size      :      6-3/4 Inch H x 6-3/4 Inch W
Valve Type      :      Brass Ball Valve
Material      :      Steel
Color      :      White
Includes      :      Nailplate Support Brackets
  • 5 Inch H x 5 Inch W interior faceplate
  • 1/4 Inch valve
  • Copper tailpiece
  • 28 ga steel faceplate
  • pdfInstruction Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Oatey_38995_Instruction_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Oatey_39140_Specification_Sheet.pdf
