BURNDY® BISR350

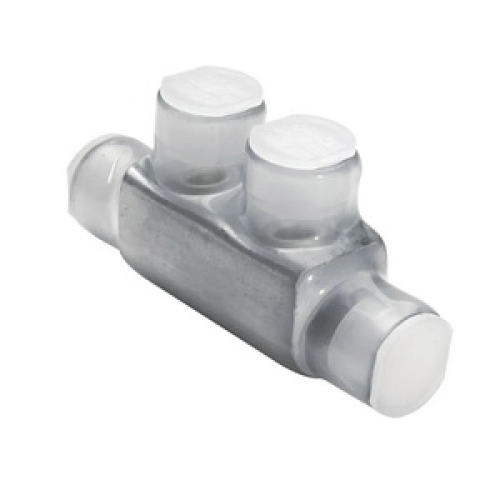

BURNDY® BISR350 Splice Reducer, 10 AWG - 350 kcmil, Stranded Aluminum/Copper Conductor, 600 V, Clear

BURNDY® UNITAP™ Splice Reducer, 10 AWG - 350 kcmil Conductor, Stranded Aluminum/Copper Conductor, Plastisol Insulation, 600 V, 310 A, Clear, Aluminum, 2 Bolt Holes, 4.63 Inch L x 1.34 Inch W x 2.35 Inch H, 90 deg C

Conductor Size      :      10 AWG - 350 kcmil
Conductor Type      :      Stranded Aluminum/Copper
Insulation Type      :      Plastisol
Voltage Rating      :      600 V
Amperage Rating      :      310 A
Color      :      Clear
Material      :      Aluminum
Number of Bolt Holes      :      2
Dimensions      :      4.63 Inch L x 1.34 Inch W x 2.35 Inch H
Temperature Rating      :      90 deg C
  • Clear Plastisol Covered Al6061-T6 Aluminum Body
  • Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol
  • Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed
  • Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking
  • Reduces Number Of Connectors Carried In Inventory, In-Line Splice/Reductions Are Made Quickly And Easily With The Unitap Line Of Connectors
