Lithonia Lighting® WPX3 LED 50K MVOLT PE DDBXD
Send Print
  1. pin-int

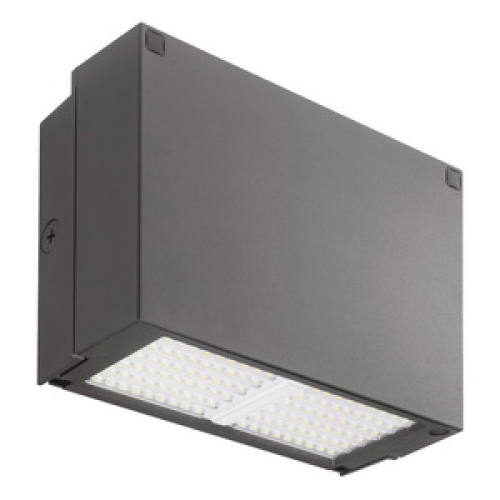

Lithonia Lighting® WPX3 LED 50K MVOLT PE DDBXD

Lithonia Lighting® WPX3 LED 50K MVOLT PE DDBXD WPX3 Wall Pack, 120 - 277 V, 69 W LED Lamp, 9200 Lumens, 5000 K Color

  • Manufacturers: Acuity Brands
  • Brand Name: Lithonia Lighting®
  • CPEPN: WPX3 LED 50K MVOLT PE DDBXD
  • MPN: WPX3 LED 50K MVOLT PE DDBXD
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading
    • This item does not qualify for free shipping

WPX wall mount luminaires are cost-effective and energy-efficient making them ideal for HID replacement and budget-constrained new construction projects. The WPX family has four sizes with lumen packages of 850 to 9200 Lumens creating a solution that meets the needs of over-the-door lighting to 400 W metal halide replacement at mounting heights of up to 20 ft. The simple geometric shape of the WPX luminaires allows them to blend with any architecture while the footprint covers the stain left by the fixture it replaces. The WPX features a wide light distribution that creates safe, continuous illumination of the perimeter of the building. Low initial cost, high energy savings, and DLC Premium listing enable fast paybacks, typically less than two years. WPX Size 3 delivers 9200 Lumens making it ideal perimeter lighting applications and mounting heights of up to 20 ft. The WPX3 can replace up to 400 W metal halide while saving 85% energy costs.

Lithonia Lighting® Wall Pack, Series: WPX3, 120 - 277 V, 69 W Fixture, LED Lamp, 9200 Lumens, 5000 K Color, IP66, Wall Mount, Die Cast Aluminum Housing, 9-1/2 Inch H x 13 Inch W x 5-1/2 Inch D

Series      :      WPX3
Voltage Rating      :      120 - 277 V
Fixture Wattage      :      69 W
Lamp Type      :      LED
Light Output      :      9200 Lumens
Color Temperature      :      5000 K
Enclosure Type      :      IP66
Mounting Type      :      Wall
Housing Material      :      Die Cast Aluminum
Dimensions      :      9-1/2 Inch H x 13 Inch W x 5-1/2 Inch D
  • The WPX LED wall packs are designed to provide a cost-effective, energy-efficient solution for the one-for-one replacement of existing HID wall packs
  • The WPX1, WPX2 and WPX3 are ideal for replacing up to 150 W, 250 W and 400 W HID luminaires respectively
  • WPX luminaires deliver a uniform, wide distribution
  • WPX is rated for -40 deg C to 40 deg C
  • WPX feature a die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life
  • The luminaires are IP66 rated, and sealed against moisture or environmental contaminants
  • Dark bronze finish
  • pdfInstallation Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_WPX1_LED_P2_50K_MVOLT_PE_DDBXD_Installation_Sheet.pdf
  • pdfSell Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_WPX1_LED_P2_50K_MVOLT_PE_DDBXD_Sell_Sheet.pdf
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_WPX1_LED_P2_50K_MVOLT_PE_DDBXD_Specification_Sheet.pdf
