Keystone KTEB-2110-UV-TP-PIC /A-DP

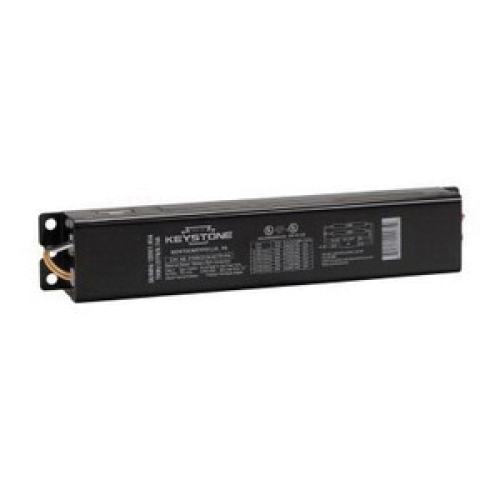

Keystone KTEB-2110-UV-TP-PIC /A-DP Fluorescent Ballast, Fluorescent Lamp, 110 W, 120 to 277 VAC

  • Manufacturers: Keystone Technologies
  • Brand Name: Keystone
  • CPEPN: KTEB-2110-UV-TP-PIC /A-DP
  • MPN: KTEB-2110-UV-TP-PIC /A-DP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
    • This item does not qualify for free shipping

Keystone Fluorescent Ballast, Fluorescent Lamp, 110 W Wattage, 120 to 277 VAC, 1.65 A, 0.85 Ballast Factor, Program Start, -20 deg F Minimum Starting Temperature, >=0.99 Power Factor, 2 Lamps, 11.8 Inch Length, 2.15 Inch Width, 1.61 Inch Height, 167 deg F, 3 Year Warranty

Lamp Type      :      Fluorescent
Wattage      :      110 W
Voltage Rating      :      120 to 277 VAC
Amperage Rating      :      1.65 A
Ballast Factor      :      0.85
Start Type      :      Program
Minimum Starting Temperature      :      -20 deg F
Power Factor      :      >=0.99
Number of Lamps      :      2
Length      :      11.8 Inch
Width      :      2.15 Inch
Height      :      1.61 Inch
Temperature Rating      :      167 deg F
Warranty      :      3 Year
  • Parallel lamp connection
  • High power factor
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Keystone_KTEB_2110_UV_TP_PIC_A_DP_Specification_Sheet.pdf
