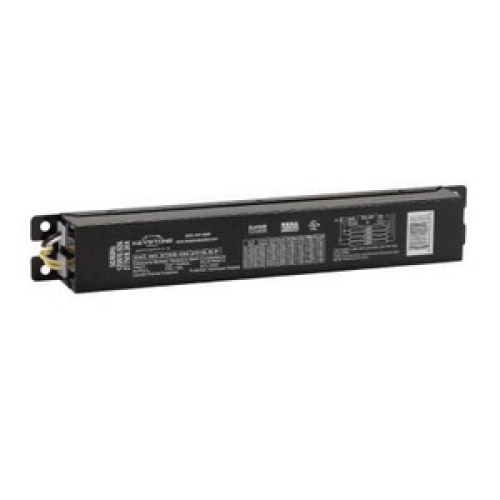

Keystone KTEB-432-UV-IS-N-P-DP

Keystone KTEB-432-UV-IS-N-P-DP Type HL Fluorescent Ballast, Fluorescent Lamp, 32 W, 120 to 277 VAC

  • Manufacturers: Keystone Technologies
  • Brand Name: Keystone
  • CPEPN: KTEB-432-UV-IS-N-P-DP
  • MPN: KTEB-432-UV-IS-N-P-DP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
  • This item does not qualify for free shipping

Keystone Fluorescent Ballast, Type HL, Fluorescent Lamp, 32 W Wattage, 120 to 277 VAC, 0.93 A, 0.88 Ballast Factor, Instant Start, -18 deg C Minimum Starting Temperature, >=0.98 Power Factor, 4 Lamps, 9-1/2 Inch Length, 1.3 Inch Width, 1.1 Inch Height, 167 deg F, 5 Year Warranty

Type      :      Type HL
Lamp Type      :      Fluorescent
Wattage      :      32 W
Voltage Rating      :      120 to 277 VAC
Amperage Rating      :      0.93 A
Ballast Factor      :      0.88
Start Type      :      Instant
Minimum Starting Temperature      :      -18 deg C
Power Factor      :      >=0.98
Number of Lamps      :      4
Length      :      9-1/2 Inch
Width      :      1.3 Inch
Height      :      1.1 Inch
Temperature Rating      :      167 deg F
Warranty      :      5 Year
  • Parallel lamp connection
  • High power factor
  • Anti-striation circuitry
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Keystone_KTEB_432_UV_IS_N_P_VA1_Specification_Sheet.pdf
