Keystone KTEB-240-UV-TP-PIC-DP
Send Print
  1. pin-int

Keystone KTEB-240-UV-TP-PIC-DP

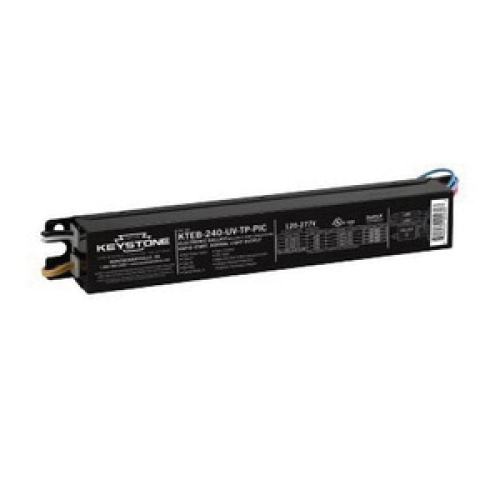

Keystone KTEB-240-UV-TP-PIC-DP Fluorescent Ballast, Fluorescent Lamp, 40 W, 120 to 277 VAC, 0.62 A

  • Manufacturers: Keystone Technologies
  • Brand Name: Keystone
  • CPEPN: KTEB-240-UV-TP-PIC-DP
  • MPN: KTEB-240-UV-TP-PIC-DP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Check Branch and Showroom availability
    • This item does not qualify for free shipping

Keystone Fluorescent Ballast, Fluorescent Lamp, 40 W Wattage, 120 to 277 VAC, 0.62 A, 0.85 Ballast Factor, Rapid Start, 32 deg F Minimum Starting Temperature, >=0.98 Power Factor, 2 Lamps, 9-1/2 Inch Length, 1.3 Inch Width, 1.1 Inch Height, 194 deg F, 3 Year Warranty

Lamp Type      :      Fluorescent
Wattage      :      40 W
Voltage Rating      :      120 to 277 VAC
Amperage Rating      :      0.62 A
Ballast Factor      :      0.85
Start Type      :      Rapid
Minimum Starting Temperature      :      32 deg F
Power Factor      :      >=0.98
Number of Lamps      :      2
Length      :      9-1/2 Inch
Width      :      1.3 Inch
Height      :      1.1 Inch
Temperature Rating      :      194 deg F
Warranty      :      3 Year
  • Series lamp connection
  • High power factor
  • pdfSpecification Sheet https://www.cpesupply.com//ASSETS/DOCUMENTS/ITEMS/EN/Keystone_KTEB_240_UV_TP_PIC_DP_Specification_Sheet.pdf
