Keystone KT-LED14.5T8-48G-8CSJ-DX2
Send Print
  1. pin-int

Keystone KT-LED14.5T8-48G-8CSJ-DX2

Keystone KT-LED14.5T8-48G-8CSJ-DX2 LED Lamp, 14.5 W, G13 Medium Bi-Pin LED Bulb

  • Manufacturers: Keystone Technologies
  • Brand Name: Keystone
  • CPEPN: KT-LED14.5T8-48G-8CSJ-DX2
  • MPN: KT-LED14.5T8-48G-8CSJ-DX2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Total Availability: loading

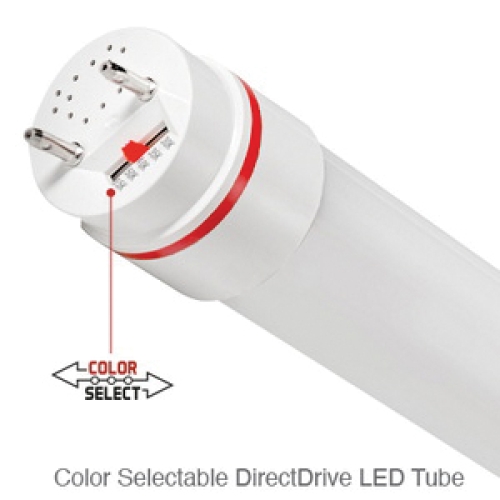

Keystone's DirectDrive DX2 is a UL type B line voltage tube offering single or double ended wiring options, allowing you to hold less inventory. In addition, DX2 utilizes both shunted and non-shunted lamp holders, making it an easy LED replacement for T8 fluorescent tubes. These T8 LED tubes can provide up to 50% more energy savings than standard F32T8 lamps. Since LED tubes have a longer useful lifespan than their fluorescent counterparts, DX2 will also reduce maintenance costs. These tubes are available in both dedicated color temperature options and with Keystone's color select technology. The selectable version allows users to choose from among five color temperatures 3000 K, 3500K, 4000K, 5000K and 6500K making this versatile tube an ideal replacement for conventional fluorescent lamp, single or double ended line voltage wiring. Select DirectDrive DX2 tubes are now available in made in America options. These tubes offer the same single- or double ended wiring versatility while meeting with BAA and TAA standards.

Keystone LED Lamp, 14.5 W Wattage, 120/277 VAC, LED Bulb, G13 Medium Bi-Pin Base, 120 Lumens Lumens, >80 CRI, 3000, 3500, 4000, 5000, 6500 K Color Temperature, 240 deg Beam, Dimensions: 1.1 Inch Dia x 47.2 Inch L, Warranty: 5 Years

Wattage      :      14.5 W
Voltage Rating      :      120/277 VAC
Bulb Type      :      LED
Bulb Base      :      G13 Medium Bi-Pin
Lumens      :      120 Lumens
Color Rendering Index (CRI)      :      >80
Color Temperature      :      3000, 3500, 4000, 5000, 6500 K
Beam Angle      :      240 deg
Dimensions      :      1.1 Inch Dia x 47.2 Inch L
Warranty      :      5 Years
  • Reduces inventory via single or double ended versatility
  • Simplifies installation by utilizing either shunted (double-ended only) or non-shunted lamp holders
  • Saves up to 50% more energy than standard F32T8 lamps
  • Reduces maintenance costs with longer useful lifespan
  • Environmentally friendly no mercury used
  • Instant startup
  • Frosted lens eliminates pixelation
  • Integral driver (isolated), eliminates the need for an external driver or ballast
  • Improved lamp durability with shatterproof coated glass (optional)
  • Complies with UL safety regulations for tubes with double ended wiring
  • 110+ lumens per watt
