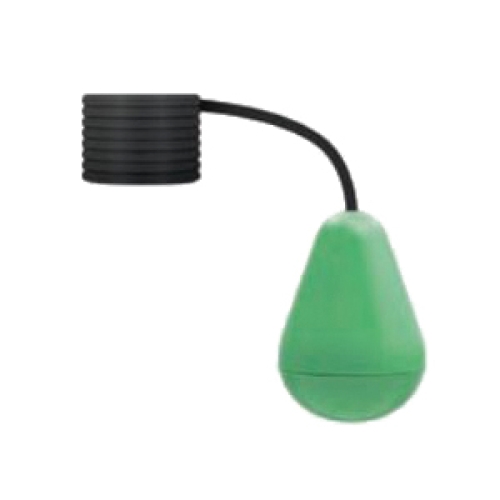

SPI Float Switch, High-Amp, Series: A-Navigator, 120/240 V, 25 A Pump Running, 96 A Pump Starting, Mechanically-Activated Switch, Pumping Range: 8 to 28 Inch, Foam Float, 12 ga Wire, 20 ft Cord Length, SST Pipe Mounting, Chlorinated Polyethylene Body, Standard Enclosure, Warranty: 3 Years Limited
| Type | : | High-Amp |
| Series | : | A-Navigator |
| Voltage Rating | : | 120/240 V |
| Amperage Rating | : | 25 A Pump Running, 96 A Pump Starting |
| Switch Type | : | Mechanically-Activated |
| Pumping Range | : | 8 to 28 Inch |
| Float Material | : | Foam |
| Wire Size | : | 12 ga |
| Cord Length | : | 20 ft |
| Mounting Type | : | SST Pipe |
| Body Material | : | Chlorinated Polyethylene |
| Enclosure Type | : | Standard |
| Warranty | : | 3 Years Limited |
- Mechanically-activated, wide-angle float to directly control a pump
- Not sensitive to rotation or turbulence
- Controls pumps up to 1-1/2 hp at 120 VAC and 3 hp at 240 VAC
- 12 ga, two-conductor, SJOW water-resistant (CPE) material
- 10 ft, 15 ft, 20 ft, 30 ft or 50 ft cord lengths for direct wiring only
- Individually boxed and includes SST pipe mount assembly
- Foam filled mechanical float
