Water pressure reducing valve 500XLYSBR with Strainer has high-flow capacity making this device most suitable for industrial water lines and commercial irrigation systems.This relief valve with balanced piston design enables the regulator to react in a smooth and responsive manner to changes in system flow demand, while at the same time, providing protection from inlet pressure changes.

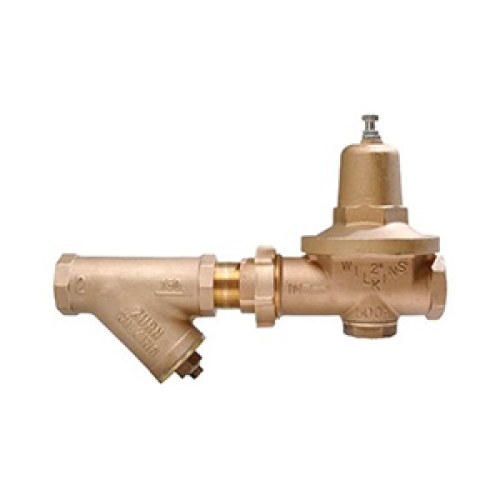

Zurn® Pressure Reducing Valve with Strainer, Series: Low-lead 500, 3/4 Inch Nominal, Union x FNPT End Style, 300 psi Pressure, 140 deg F, Media: Water, Bronze Body, Brass, Stainless Steel Trim, Buna Nitrile, EPDM Softgoods, Dimensions: 9-1/8 x 6 Inch
| Series | : | Low-lead 500 |
| Nominal Size | : | 3/4 Inch |
| End Style | : | Union x FNPT |
| Pressure Range | : | 300 psi |
| Temperature Rating | : | 140 deg F |
| Media | : | Water |
| Body Material | : | Bronze |
| Trim Material | : | Brass, Stainless Steel |
| Softgoods Material | : | Buna Nitrile, EPDM |
| Dimensions | : | 9-1/8 x 6 Inch |
- Low-lead 500 series equipped with wye strainer
- Strainer allows the valve to meet residential code compliance
- Highest flow rate per fall off
