A redesign of the Kingston™ bowl, the Kingston™ ultra is an all-purpose flushometer bowl with robust flushing capability. The redesign replaces the flushing engine with the Ultra platform, allowing this bowl to operate at 1.0 to 1.6 gpf. This platform delivers strong performance even at lower than anticipated incoming water pressure or flow. This redesign also introduces a more contemporary aesthetic to complement any decor. The toilet's footprint is designed to cover the current Kingston™ footprint and all major wall-mount toilets on the market.

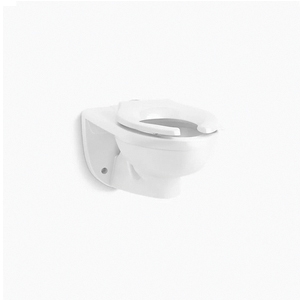

Kohler® Top Spud Flushometer Bowl, Series: Kingston™ Ultra, 1 gpf, 1.1 gpf, 1.28, 1.6 gpf Flush, Elongated Shape, 11 x 8-1/4 Inch Water Surface, 2-1/8 Inch Trapway, 1-1/2 Inch Inlet Spud, Wall Mounting, 15 Inch Height, 15-11/16 Inch Width, 13-7/16 Inch Depth, Vitreous China, White, Warranty: 1 Year Limited
| Series | : | Kingston™ Ultra |
| Flush Rate | : | 1 gpf, 1.1 gpf, 1.28, 1.6 gpf |
| Shape | : | Elongated |
| Water Surface Area | : | 11 x 8-1/4 Inch |
| Trapway Size | : | 2-1/8 Inch |
| Inlet Spud Size | : | 1-1/2 Inch |
| Mounting Type | : | Wall |
| Height | : | 15 Inch |
| Width | : | 15-11/16 Inch |
| Depth | : | 13-7/16 Inch |
| Material | : | Vitreous China |
| Color | : | White |
| Warranty | : | 1 Year Limited |
- Elongated bowl offers added room and comfort
- Siphon jet
- 1 gpf (3.8 lpf), 1.1 gpf (4.2 lpf), 1.28 (4.8 lpf) or 1.6 gpf (6 lpf) depending on flushometer specified
- 1-1/2 Inch (38 mm) top spud
