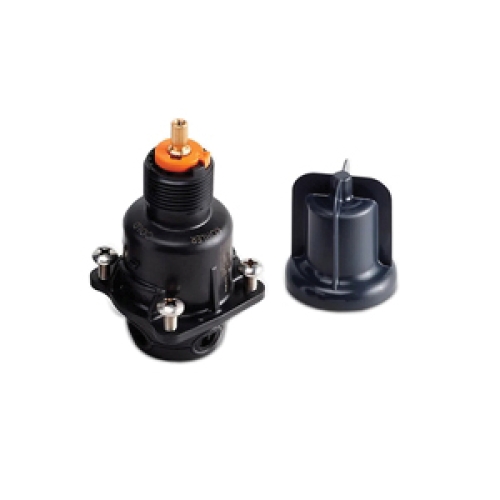

The new Kohler® Rite-Temp® valve system sets new standards for ease of installation, application versatility and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The new Kohler® Rite-Temp® pressure-balance cartridge can be ordered separately or as a complete valve and cartridge kit (K-P8304).
Kohler® Pressure-Balancing Cartridge, Specifications: 5 gpm Flow Rate, 45 psi Pressure, 2-1/2 Inch Overall Length, 2-1/2 Inch Overall Width, 4-11/16 Inch Overall Height, Warranty: Limited Lifetime
| Specifications | : | 5 gpm Flow Rate, 45 psi Pressure |
| Overall Length | : | 2-1/2 Inch |
| Overall Width | : | 2-1/2 Inch |
| Overall Height | : | 4-11/16 Inch |
| Warranty | : | Limited Lifetime |
- 5 gpm (18.9 lpm) maximum flow rate at 45 psi
- Single lever design cycles from off through cold to hot
- Anti-scald protection
- One-piece cartridge design simplifies installation and maintenance
- Adjustable high-temperature limit stop to control maximum water temperature
- Requires trim and any K-8300 valve body to complete installation (sold separately)
- Pressure-balancing diaphragm technology maintains outlet temperature within +/-3 deg F during water pressure fluctuations
Installation Sheet
