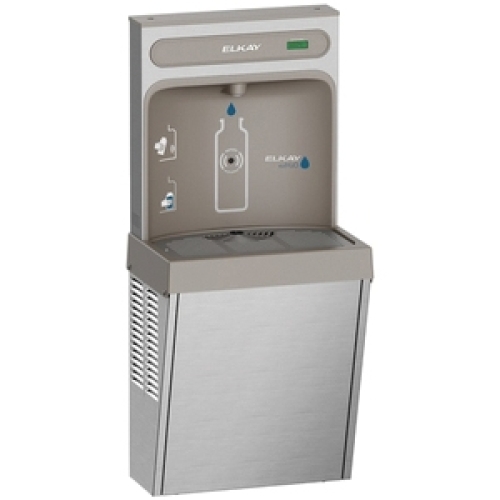

The Elkay ezH2O® refrigerated surface mount bottle filling station delivers a clean, quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. Ideal for installations with limited space. Sanitary no-touch sensor activation features an automatic 20 sec shut-off timer.
Elkay® Bottle Filling Station, Refrigerated, Non-Filtered, Series: ezH2O®, 1.1 gpm Flow Rate, 1-Station, 1-1/4 Inch Drain Connection, Surface Mounting, 115 V, 60 Hz Electrical Rating, R-134a Refrigerant, Stainless Steel, Dimensions: 17-7/8 Inch L x 11-7/8 Inch W x 41-1/4 Inch H, Warranty: 5 Year Limited
| Type | : | Refrigerated, Non-Filtered |
| Series | : | ezH2O® |
| Flow Rate | : | 1.1 gpm |
| Number of Stations | : | 1 |
| Drain Connection | : | 1-1/4 Inch |
| Mounting Type | : | Surface |
| Electrical Ratings | : | 115 V, 60 Hz |
| Refrigerant Type | : | R-134a |
| Material | : | Stainless Steel |
| Dimensions | : | 17-7/8 Inch L x 11-7/8 Inch W x 41-1/4 Inch H |
| Warranty | : | 5 Year Limited |
Reduced 12 Inch wall projectionStainless steel grate for convenient hands-free filling, grate is removable for easy cleaning of the basin Rough-in replacement compatible with EZ and EMAB Elkay® models Hermetically sealed refrigeration system provides chilled water to satisfy thirst Touchless, sensor-activated bottle filler designed for easy use Fill rate is 1.1 gpm Laminar flow provides clean fill with minimal splash Green Ticker™ informs user of number of 20 oz plastic water bottles saved from waste Real drain system eliminates standing water
Instruction Installation Sheet
